*Images are for illustrative purposes. Actual product appearance and specifications may vary.
AcuSeek NEW HOT
Discontinued
add compare icon

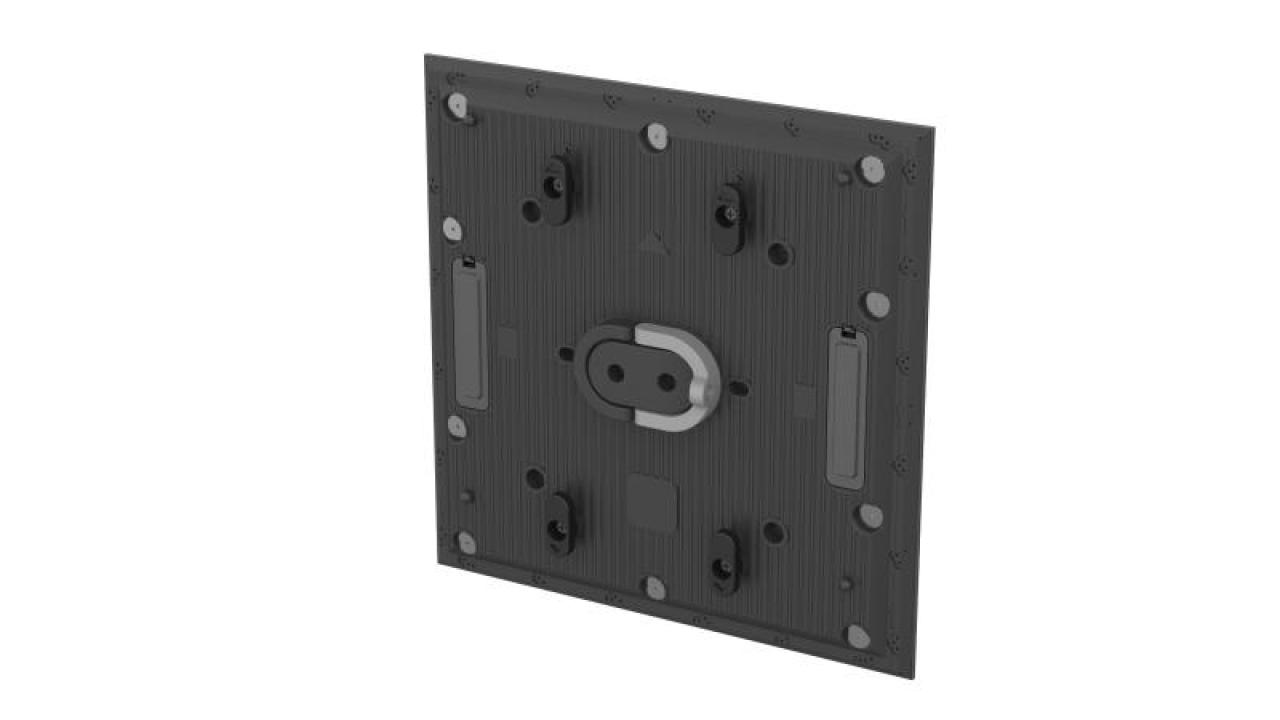

DS-D4629CE-1AB/P/M

  • Spare module for DS-D4629CE22-1AB/P
View Less
View more
Sales Inquiry

Available models:

DS-D4629CE-1AB/P/M
View more View Less
DS-D4629CE-1AB/P/M Discontinued

Specification

  • Product Type
  • Product TypeSpare Modules Package
  • Cabinet
  • Pixel ConfigurationSMD Triad LED
  • Pixel Pitch CategoryP2.9
  • Pixel Pitch2.9762 mm
  • Resolution84 × 84
  • Pixel Density112896 dots/m²
  • Lamp Board HousingWith housing
  • Maintenance MethodFront & Rear maintenance
  • Display
  • White Balance Brightness1000 cd/㎡
  • Color Temperature6500K adjustable
  • Viewing AngleHorizontal 160°, vertical 140°
  • Contrast Ratio≥ 6000:1
  • Color Uniformity≤ ± 0.006Cx，Cy
  • Brightness Uniformity≥ 97％
  • Processing Performance
  • Frame Frequency50/60 Hz
  • Refresh Rate7680 Hz
  • Grey Level16 bit
  • Key Material
  • Lamp EncapsulationSMD2020
  • Control SystemHikvision
  • Working Environment
  • Working Temperature-20 ℃ to 45 ℃ (-4 ℉ to 113 ℉)
  • Working Humidity10% RH to 90% RH (No condensation)
  • Storage Humidity10% RH to 90% RH (No condensation)
  • Storage Temperature-40 ℃ to 60 ℃ (-40 ℉ to 140 ℉)
  • General
  • Package Dimensions (W × H × D)320 (W) mm × 315 (H) mm × 150 (D) mm (12.60'' × 12.40'' × 5.91'')
  • Gross Weight2.8 kg/4 in 1 (6.17 lb.)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Product Type
Product Type
Spare Modules Package
Cabinet
Pixel Configuration
SMD Triad LED
Pixel Pitch Category
P2.9
Pixel Pitch
2.9762 mm
Resolution
84 × 84
Pixel Density
112896 dots/m²
Lamp Board Housing
With housing
Maintenance Method
Front & Rear maintenance
Display
White Balance Brightness
1000 cd/㎡
Color Temperature
6500K adjustable
Viewing Angle
Horizontal 160°, vertical 140°
Contrast Ratio
≥ 6000:1
Color Uniformity
≤ ± 0.006Cx，Cy
Brightness Uniformity
≥ 97％
Processing Performance
Frame Frequency
50/60 Hz
Refresh Rate
7680 Hz
Grey Level
16 bit
Key Material
Lamp Encapsulation
SMD2020
Control System
Hikvision
Working Environment
Working Temperature
-20 ℃ to 45 ℃ (-4 ℉ to 113 ℉)
Working Humidity
10% RH to 90% RH (No condensation)
Storage Humidity
10% RH to 90% RH (No condensation)
Storage Temperature
-40 ℃ to 60 ℃ (-40 ℉ to 140 ℉)
General
Package Dimensions (W × H × D)
320 (W) mm × 315 (H) mm × 150 (D) mm (12.60'' × 12.40'' × 5.91'')
Gross Weight
2.8 kg/4 in 1 (6.17 lb.)
