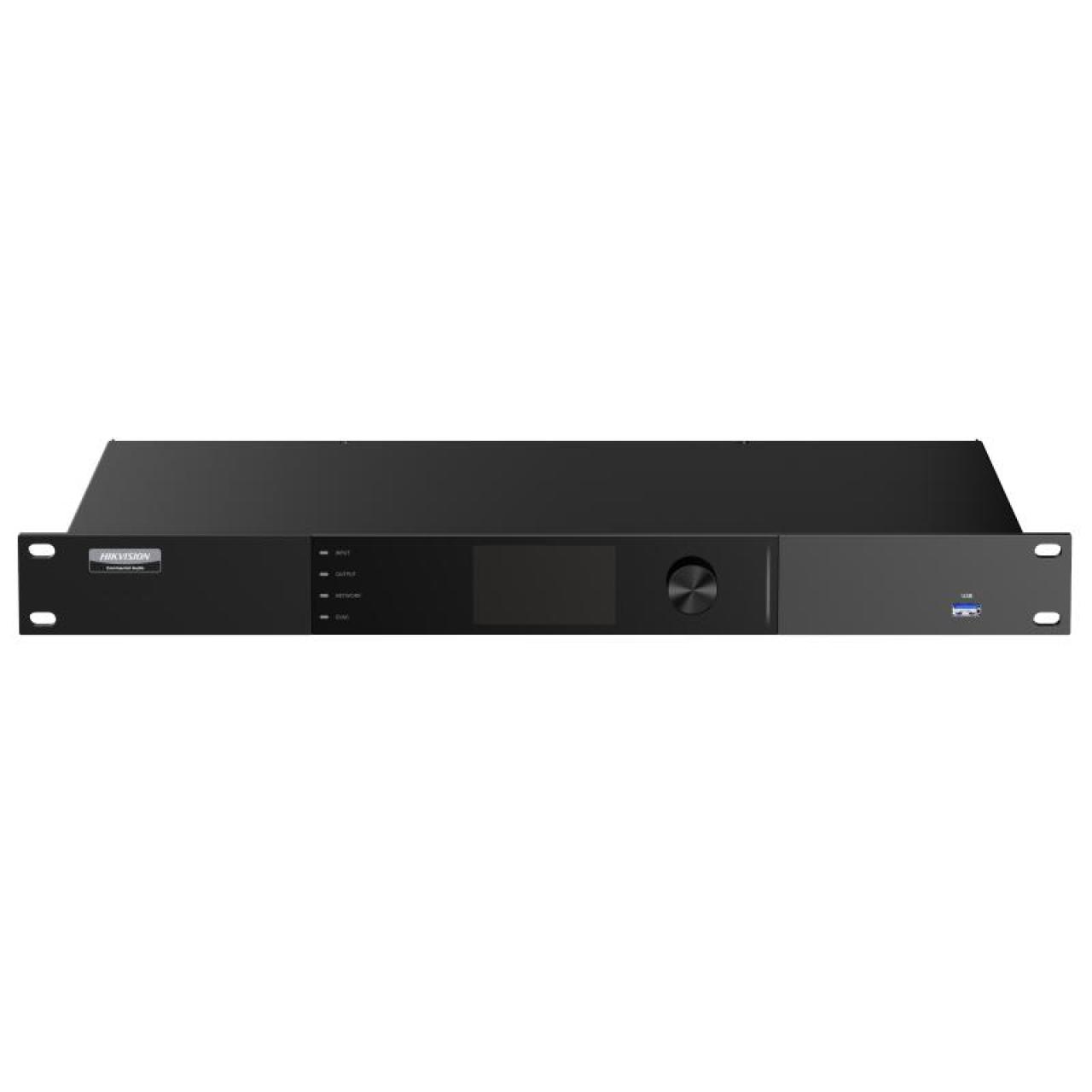

Alarm
1 EVAC alarm input
2 alarm input
1 alarm output, when the output device connected to the alarm output is normally closed, connect: 1A GND; when the output device connected to the alarm output is normally open, connect: 1B GND.
Ethernet Interface
1 RJ45 10 M/100 M adaptive Ethernet port
Local Storage
Built-in 4 GB EMMC (Audio file storage is 1 GB.)
Audio In
RCA in 1 to 4: 0 dBV, 10 kΩ, unbalance, RCA pin jack
XLR in 1 to 4: -8dBu, +4dBu, +21dBu, 13.6kΩ, balance, plug-in screw temrinals
USB 2.0 × 1
Type-C × 1
AES67 IN × 2
*RCA in 1 to 4 and XLR in 1 to 4 cannot be used in the same time
Audio Out
Output Mode 1 (4-channel): Constant Impedance Output × 4: 4 Ω COM & 8 Ω COM, up to 125 W for a single channel output
Output Mode 2 (2-channel): Constant Impedance Output × 2: 4Ω / 8Ω COM, up to 250 W per channel
Constant Voltage Output × 2: 100 V COM & 70 V COM, up to 250 W for a single channel output
RCA out 1 to 2: 0 dBV, unbalance, RCA pin jack
*Constant Impedance Output and Constant Voltage Output cannot be used in the same time.
LED Indicator
Power Indicator:
• Red: Device is powered on.
• White: Device is operating normally.
Input Indicator:
• Green: At least one input channel has a signal.
• Yellow: At least one input channel has a level limitation or overload.
Output Indicator:
• Green: At least one output channel has a signal.
• Yellow: At least one input channel has a level limitation or overload condition.
• Red: At least one output channel has a short circuit, overtemperature, undervoltage, overload, mute, or standby condition.
Network Indicator:
• Red: Network is not connected.
• Green: Network is connected.
EVAC Alarm Indicator:
Red: Device has triggered the EVAC alarm.
Button
Jog dial button × 1
USB
USB 2.0. File format: FAT32 and EXFAT, maximum capacity: 256 GB.
FAT32 formatted USB drive: maximum capacity of a single partition is 32 GB
EXFAT formatted USB drive: Maximum capacity of a single partition is 256 GB
