*Images are for illustrative purposes. Actual product appearance and specifications may vary.
AcuSeek NEW HOT
add compare icon

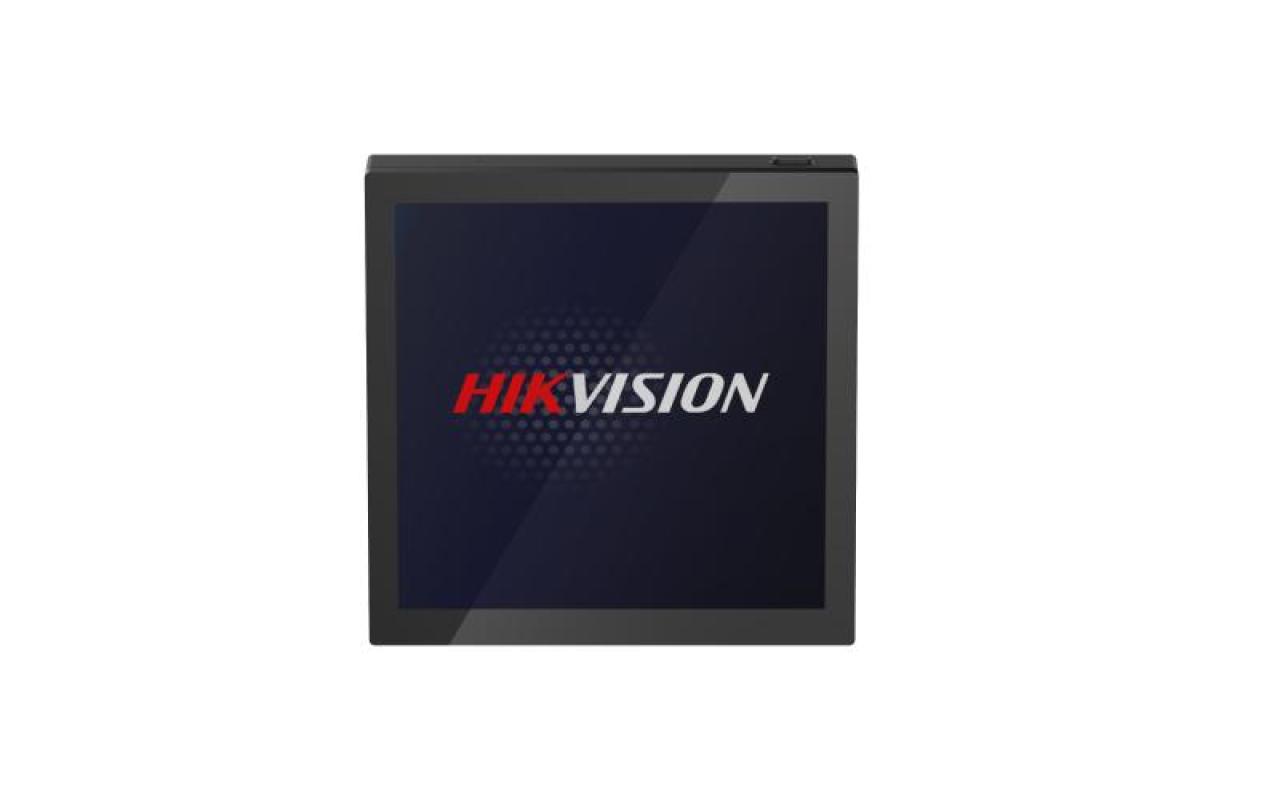

Network Volume Controller

  • Supports linking to network cabinets, column speakers, and amplifiers for volume linkage control; supports linking to pick-ups for output volume linkage control.
  • Supports touching the screen to adjust the settings. Supports one-touch mute and single channel mute; supports volume adjustment via sliding bar, brightness adjustment of screen, and standby mode and standby time settings.
  • The current time is displayed in the upper-left corner of the screen and on the standby page. The upper-right corner of the screen supports displaying network status or device linking status.
  • The device is made of flame retardant materials.
  • Supports wall mounting.
  • Up to 4 channels are supported, and each channel supports up to 16 volume controls.
  • Dual power supply mode (PoE and 12 VDC) and RS-485 interface for communication control expansion.
  • The device has a status indicator on top for real-time monitoring of the device status. You can disable this function in Settings. The device also has a reset button on top. Press and hold the button for 5 seconds to restore the device to factory settings.
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-QAP1C00G1
View more View Less
DS-QAP1C00G1
Data Sheet

Specification

  • Function
  • Display Screen Dimension4" with 480 × 480 resolution
  • Network
  • Interface Protocol (API)ISAPI, OTAP
  • Interface
  • Device Interface1 RJ45 10 M/100 M self-adaptive Ethernet interface 1 RS485 (+ - interface) 1 12 VDC (+ GND) input interface
  • LED Indicator① Indicator on the device: Solid White: working normally; Solid Red: Abnormal Status (power off or function exception) ② Indicator on the screen: Solid Green: Network and communication status normal Solid Red: No linked device or network disconnected
  • General
  • Dimension86 mm × 86 mm × 37.5 mm (3.39" × 3.39" × 1.48")
  • PowerPoE(IEEE 802.3af class1), max. 500 mA 12 VDC, 1 A
  • 140 g (0.31 lb.)
  • With Package Weight213 g (0.47 lb.)
  • MaterialPlastic (sheel) LED (Screen)
  • Power Consumption3.2 W
  • General FunctionsSupports network protocol linking: 1-to-1 and 1-to-many volume linking control; A single channel supports linking up to 16 volume control channels; Up to four channels can be added for control management, and a total of 4 x 16 volume control channels can be linked.
  • ColorBlack
  • Packing ListDevice, screw pack, cable
  • Operating Temperature-10 ℃ to 50 ℃ (14 °F to 122 °F)
  • Operating Humidity<90%
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Function
Display Screen Dimension
4" with 480 × 480 resolution
Network
Interface Protocol (API)
ISAPI, OTAP
Interface
Device Interface
1 RJ45 10 M/100 M self-adaptive Ethernet interface 1 RS485 (+ - interface) 1 12 VDC (+ GND) input interface
LED Indicator
① Indicator on the device: Solid White: working normally; Solid Red: Abnormal Status (power off or function exception) ② Indicator on the screen: Solid Green: Network and communication status normal Solid Red: No linked device or network disconnected
General
Dimension
86 mm × 86 mm × 37.5 mm (3.39" × 3.39" × 1.48")
Power
PoE(IEEE 802.3af class1), max. 500 mA 12 VDC, 1 A
140 g (0.31 lb.)
With Package Weight
213 g (0.47 lb.)
Material
Plastic (sheel) LED (Screen)
Power Consumption
3.2 W
General Functions
Supports network protocol linking: 1-to-1 and 1-to-many volume linking control; A single channel supports linking up to 16 volume control channels; Up to four channels can be added for control management, and a total of 4 x 16 volume control channels can be linked.
Color
Black
Packing List
Device, screw pack, cable
Operating Temperature
-10 ℃ to 50 ℃ (14 °F to 122 °F)
Operating Humidity
<90%
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Function
  • Function
Network
  • Network
Interface
  • Interface
  • Interface
General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V1.0.0_260414
Applied to:
DS-QAP1C00G1
