*Images are for illustrative purposes. Actual product appearance and specifications may vary.
AcuSeek NEW HOT
add compare icon

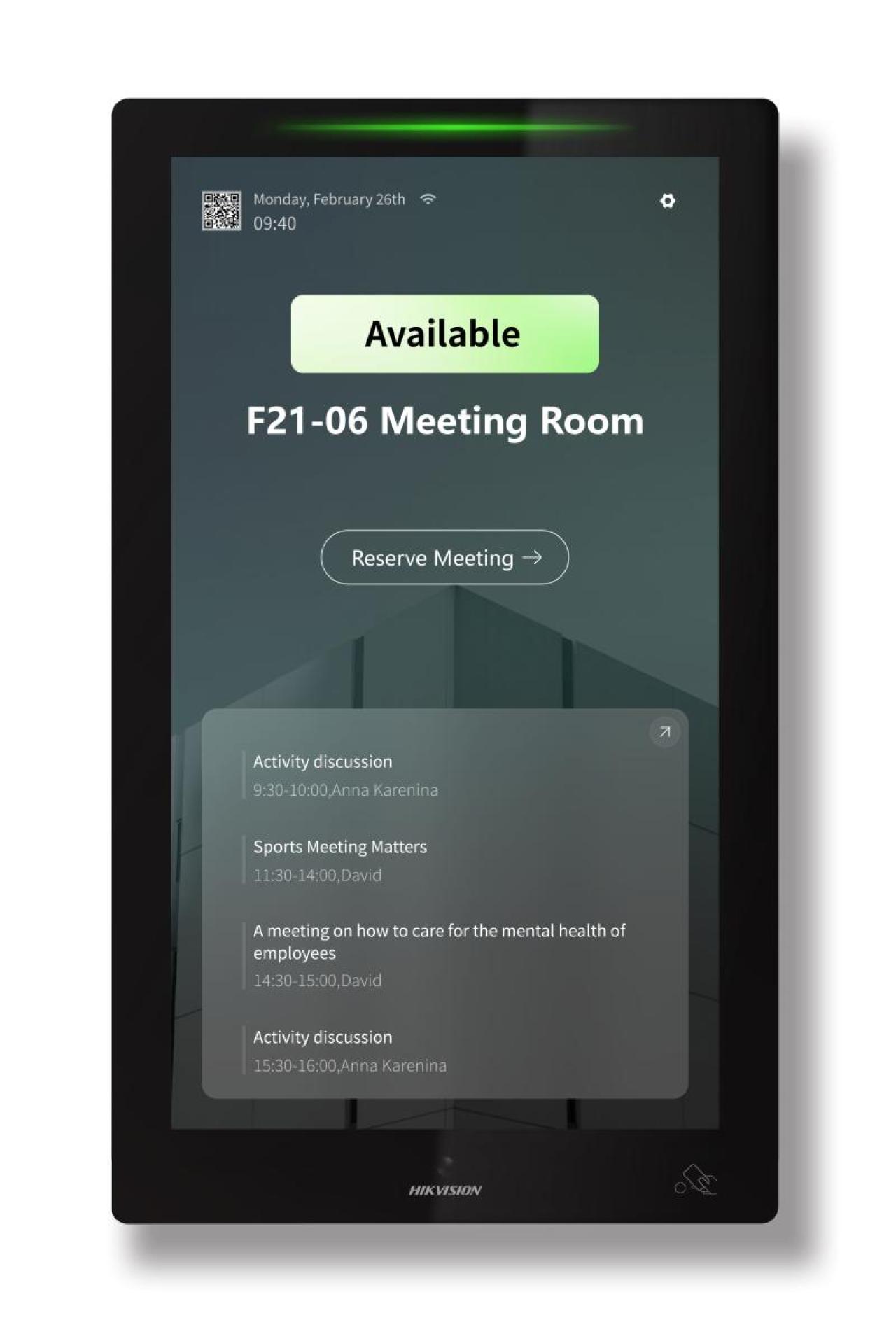

16-inch Scheduling Panel

  • 15.6-inch screen for excellent display on Scheduling Panel
  • Wall-mounted installation with tempered-glass design
  • Built-in Hikvision face recognition algorithm to support anti-spoofing
  • POE power supply with access control relay output
  • Support red, green, and blue indicators to display different status
  • Built-in 13.56 MHz RFID card-swiping module with high response speed, compatible with the standard card of type A and B
  • Open SDK with integrated device capability to support third-party development
View Less
View more
Sales Inquiry

Available models:

DS-D5F16CB/BV
View more View Less
DS-D5F16CB/BV

Specification

  • Product Model
  • Product ModelDS-D5F16CB/BV
  • Display
  • Screen Size15.6 inch
  • Brightness250 cd/m²
  • Viewing Angle178°(H)/178°(V)
  • Physical Resolution1080 × 1920
  • Touch
  • Touch point10
  • Built-in System
  • Processor4 cores ARM Cortex-A55
  • Memory2 GB
  • Built-in storage16 GB
  • Operation SystemAndroid 12.0
  • Camera2 MP WDR Camera
  • Card ReaderRFID
  • Mic FunctionInclude
  • Internal Function
  • Loudspeaker8 Ω，2W × 2
  • Interface
  • Data transmission interfaceUSB 2.0 × 2; USB 3.0 × 1 Access control linkage interface × 1
  • Network interface1000 M LAN, PoE AT，2.4 GHz Wifi with STA+AP support
  • BluetoothBT4.2
  • IndicatorLED
  • Working Environment
  • Operation Humidity0%~90%
  • Storage Temperature-20 ℃~60 ℃
  • Opration Temperature0 ℃~40 ℃
  • General
  • Net weight2.7 kg
  • Gross weight3.7 kg
  • Power Consumption18 W
  • Product dimensions233 mm × 400 mm × 29 mm (with wall mounting); 233 mm × 400 mm × 28 mm (without wall mounting)
  • Package dimensions538 × 100 × 342 mm
  • Mounting TypeWall mounting
  • Packing ListPower adapter × 1, Access control linkage line × 1, Quick start guide × 1, Screw kit × 1, L-type ring spanner × 1,Wall Mounting Screw Pack*2, Dust-proof bag × 1, Power cord × 1
  • Power12 VDC,2 A or POE AT
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Product Model
Product Model
DS-D5F16CB/BV
Display
Screen Size
15.6 inch
Brightness
250 cd/m²
Viewing Angle
178°(H)/178°(V)
Physical Resolution
1080 × 1920
Touch
Touch point
10
Built-in System
Processor
4 cores ARM Cortex-A55
Memory
2 GB
Built-in storage
16 GB
Operation System
Android 12.0
Camera
2 MP WDR Camera
Card Reader
RFID
Mic Function
Include
Internal Function
Loudspeaker
8 Ω，2W × 2
Interface
Data transmission interface
USB 2.0 × 2; USB 3.0 × 1 Access control linkage interface × 1
Network interface
1000 M LAN, PoE AT，2.4 GHz Wifi with STA+AP support
Bluetooth
BT4.2
Indicator
LED
Working Environment
Operation Humidity
0%~90%
Storage Temperature
-20 ℃~60 ℃
Opration Temperature
0 ℃~40 ℃
General
Net weight
2.7 kg
Gross weight
3.7 kg
Power Consumption
18 W
Product dimensions
233 mm × 400 mm × 29 mm (with wall mounting); 233 mm × 400 mm × 28 mm (without wall mounting)
Package dimensions
538 × 100 × 342 mm
Mounting Type
Wall mounting
Packing List
Power adapter × 1, Access control linkage line × 1, Quick start guide × 1, Screw kit × 1, L-type ring spanner × 1,Wall Mounting Screw Pack*2, Dust-proof bag × 1, Power cord × 1
Power
12 VDC,2 A or POE AT
