*Images are for illustrative purposes. Actual product appearance and specifications may vary.
AcuSeek NEW HOT
add compare icon

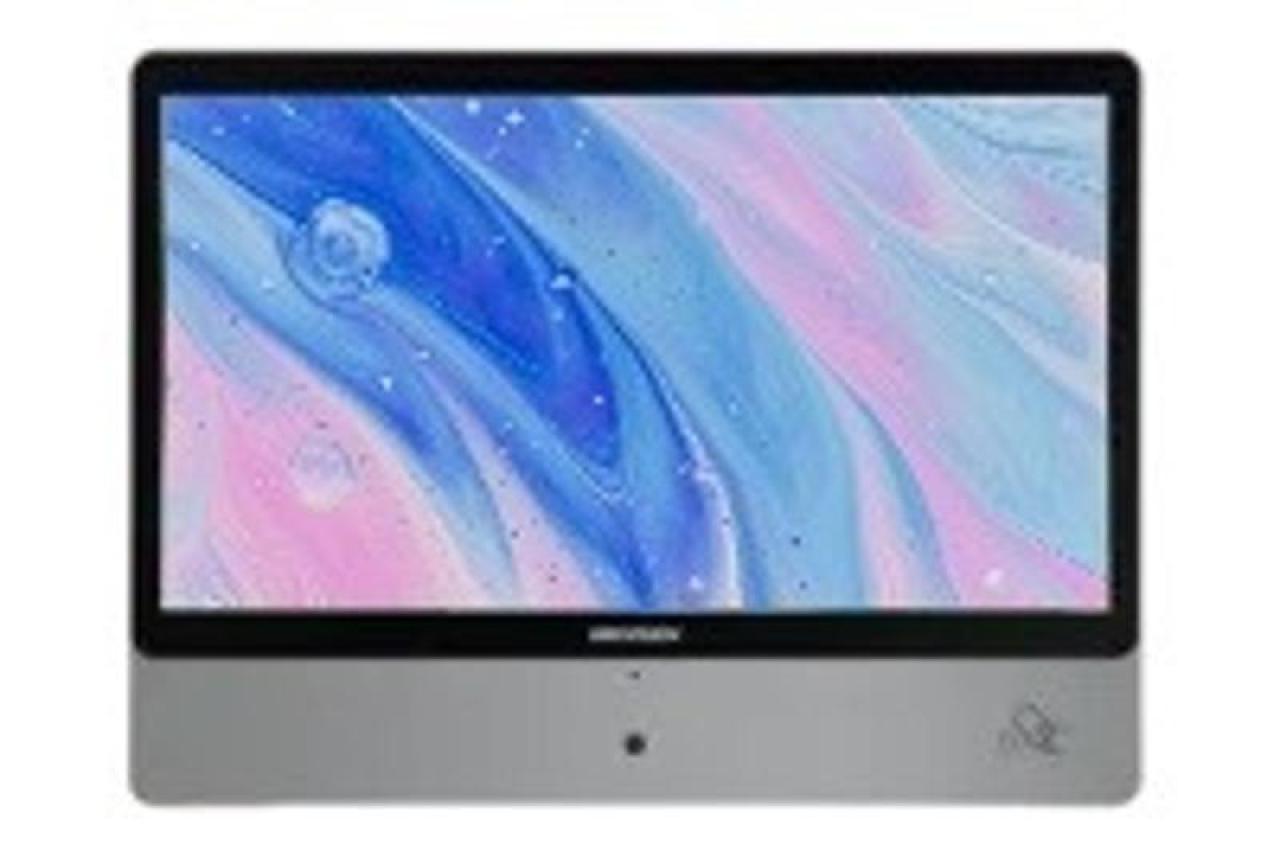

22-inch Scheduling Panel

  • 1920×1080P@60Hz full HD, 10-point capacitive touch, and 8-millisecond rapid response
  • 27-millimeter-thick body with anti-glare toughened glass, preventing strong light interference and violent destruction
  • Support IPX3 waterproof
  • Built-in light sensor module helps automatically adjust screen brightness to match surrounding lighting conditions, displaying clear pictures with energy saved
  • Built-in 13.56 MHz RFID card-swiping module with high response speed, compatible with the standard card of type A and B
  • Control access control devices through Wiegand protocol, and door locks with relays
  • Built-in 2 MP WDR camera captures clear images when facing against the light
  • Built in hikvision face comparison algorithm, supporting 10 people in the same screen, to solve the short-term attendance needs of multiple people
View Less
View more
Sales Inquiry

Available models:

DS-D5F22CB/BH
DS-D5F22CB/BH/(Czech-V)
View more View Less
DS-D5F22CB/BH

Specification

  • Product Model
  • Product ModelDS-D5F22CB/BH
  • Display
  • Screen Size21.5 inch
  • Brightness600 cd/m²
  • Viewing Angle178°(H)/178°(V)
  • Physical Resolution1920 × 1080
  • Touch
  • Touch point10
  • Built-in System
  • ProcessorCortex-A55, 4 Cores
  • Memory2 GB
  • Built-in storage16 GB
  • Operation SystemAndroid 12.0
  • Camera2 MP WDR Camera
  • Card ReaderRFID
  • Mic FunctionInclude
  • Internal Function
  • Loudspeaker8 Ω, 3 W × 2
  • Interface
  • Data transmission interfaceUSB 2.0 × 2, BT 4.0 × 1, Card-swiping for IC card, Access control linkage
  • Network interfaceLAN × 1, built-in Wi-Fi
  • BluetoothBT4.0
  • Indicator/
  • Working Environment
  • Operation Humidity0%~90%
  • Storage Temperature-20℃-60℃
  • Opration Temperature0 ℃~40 ℃
  • General
  • Net weight8.21 kg
  • Gross weight6.54 kg
  • Power Consumption60 W
  • Product dimensionsWith base: 514.06 (W) mm × 383.79 (H) mm × 28 (D) mm (20.24'' ×15.11'' × 1.1'') ; Without base: 514.06 (W) mm × 383.79 (H) mm × 26.6 (D) mm (20.24'' × 15.11'' × 1.06'')
  • Package dimensions662 (W) mm × 530 (H) mm × 110 (D) mm (26.1 '' × 20.9 '' × 4.3 '')
  • Mounting TypeWall mounting
  • Packing ListPower adapter × 1, Access control linkage line × 1, Quick start guide × 1, Screw kit × 1, L-type ring spanner × 1, Wall Mounting Screw Pack*2，Dust-proof bag × 1, Intelligent cloud digital signage paper card × 1, Power cord × 1
  • Power24 VDC, 2.5 A
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Product Model
Product Model
DS-D5F22CB/BH
Display
Screen Size
21.5 inch
Brightness
600 cd/m²
Viewing Angle
178°(H)/178°(V)
Physical Resolution
1920 × 1080
Touch
Touch point
10
Built-in System
Processor
Cortex-A55, 4 Cores
Memory
2 GB
Built-in storage
16 GB
Operation System
Android 12.0
Camera
2 MP WDR Camera
Card Reader
RFID
Mic Function
Include
Internal Function
Loudspeaker
8 Ω, 3 W × 2
Interface
Data transmission interface
USB 2.0 × 2, BT 4.0 × 1, Card-swiping for IC card, Access control linkage
Network interface
LAN × 1, built-in Wi-Fi
Bluetooth
BT4.0
Indicator
/
Working Environment
Operation Humidity
0%~90%
Storage Temperature
-20℃-60℃
Opration Temperature
0 ℃~40 ℃
General
Net weight
8.21 kg
Gross weight
6.54 kg
Power Consumption
60 W
Product dimensions
With base: 514.06 (W) mm × 383.79 (H) mm × 28 (D) mm (20.24'' ×15.11'' × 1.1'') ; Without base: 514.06 (W) mm × 383.79 (H) mm × 26.6 (D) mm (20.24'' × 15.11'' × 1.06'')
Package dimensions
662 (W) mm × 530 (H) mm × 110 (D) mm (26.1 '' × 20.9 '' × 4.3 '')
Mounting Type
Wall mounting
Packing List
Power adapter × 1, Access control linkage line × 1, Quick start guide × 1, Screw kit × 1, L-type ring spanner × 1, Wall Mounting Screw Pack*2，Dust-proof bag × 1, Intelligent cloud digital signage paper card × 1, Power cord × 1
Power
24 VDC, 2.5 A
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Product Model
  • Product Model
Display
  • Display
  • Display
  • Display
  • Display
Touch
  • Touch
Built-in System
  • Built-in System
  • Built-in System
  • Built-in System
  • Built-in System
  • Built-in System
  • Built-in System
  • Built-in System
Internal Function
  • Internal Function
Interface
  • Interface
  • Interface
  • Interface
  • Interface
Working Environment
  • Working Environment
  • Working Environment
  • Working Environment
General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
