*Images are for illustrative purposes. Actual product appearance and specifications may vary.
AcuSeek NEW HOT
add compare icon

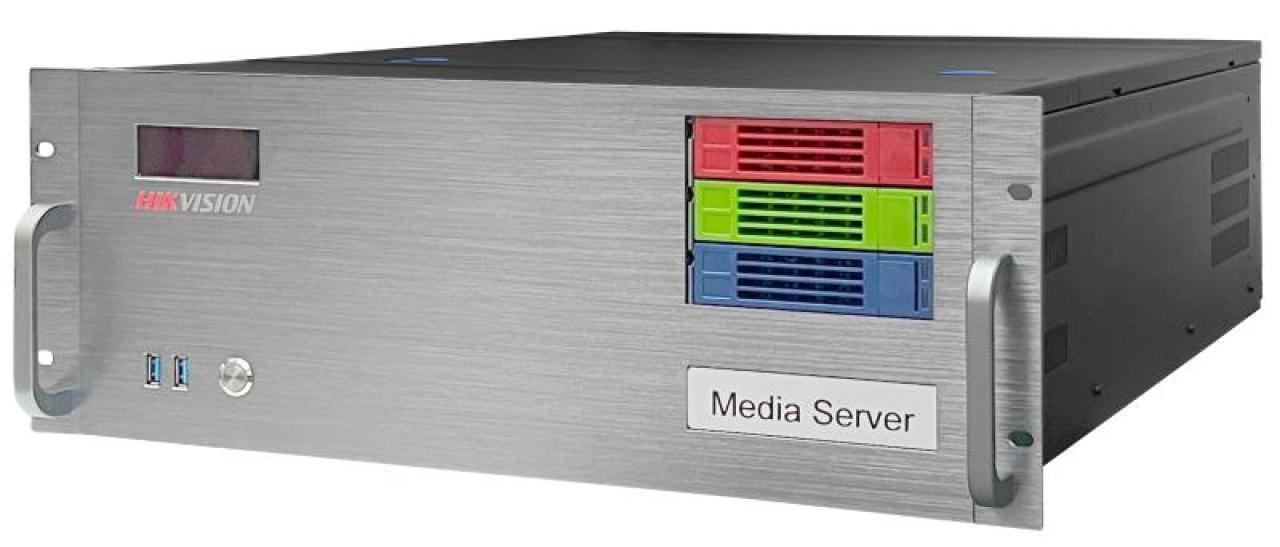

4 Ports Media Server

  • Supports 1x HDMI and 4x DP1.4 outputs
  • Supports 8K×4K seamless fusion output
  • EDID lock support to prevent display misalignment when connecting external screens
  • Custom resolution support with a maximum width and height up to 8192 pixels
  • Front-facing bays for three 3.5-inch hard drives, compatible with U.2/U.3 and SATA protocols
  • UDP and TCP protocol control support, with open API interfaces
  • Program scheduling via windowed layout mode
  • Supports slicing, virtual screens, and image rotation, ideal for irregular screen configurations
  • Compatible with H.264, H.265, and HAP video codecs
  • Supports decoding of jpg, jpeg, bmp, png, gif, and image sequence frames
  • Supports HDR video playback and SDR-to-HDR simulation effects
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-IVMS9530ES-UH04/I1P2
View more View Less
DS-IVMS9530ES-UH04/I1P2
Data Sheet

Specification

  • Product Model
  • Product ModelDS-IVMS9530ES-UH04/I1P2
  • Chassis
  • Chassis Height4U
  • Interface
  • USB Interface6 × USB 3.0
  • Power
  • Device Power Consumption650 W
  • Network
  • Network Interface1GB RJ45×2
  • General
  • Working Humidity5％-95％
  • Working Temperature5℃ to 35℃(40℉ to 95℉)
  • Dimensions (W × H × D)482mm(w)*178mm(H)*580mm(D)
  • Gross Weight19.05Kg
  • Video Output
  • Max. Video Output ResolutionWidth 8192, Height 8192, Total 35.4MP
  • Video Output InterfacesDP1.4 × 4, HDMI2.0 × 1
  • System
  • CPUIntel® Xeon® W-1390P, 8 cores, 16 threads, turbo boost up to 5.3GHz
  • CPU Dominant Frequency3.5GHz
  • Video CardIntel UHD P750 (for monitor connection)，NVIDIA RTX 2000 Ada 16GB (for screen connection)
  • Video Memory32GB DDR4 (2×16GB)
  • Storage Capacity1TB M.2 NVme SSD Gen3
  • GPU Decording Performance5.3GHz
  • Operating System SupportedWindows 11 Professional (English version)
  • Device Parameters
  • Serial Interface1 × RS-232 port
  • KVM Seat
  • Graphics Card ExpansionIntel UHD P750 (for monitor connection) NVIDIA RTX 2000 Ada 16GB (for display connection)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Product Model
Product Model
DS-IVMS9530ES-UH04/I1P2
Chassis
Chassis Height
4U
Interface
USB Interface
6 × USB 3.0
Power
Device Power Consumption
650 W
Network
Network Interface
1GB RJ45×2
General
Working Humidity
5％-95％
Working Temperature
5℃ to 35℃(40℉ to 95℉)
Dimensions (W × H × D)
482mm(w)*178mm(H)*580mm(D)
Gross Weight
19.05Kg
Video Output
Max. Video Output Resolution
Width 8192, Height 8192, Total 35.4MP
Video Output Interfaces
DP1.4 × 4, HDMI2.0 × 1
System
CPU
Intel® Xeon® W-1390P, 8 cores, 16 threads, turbo boost up to 5.3GHz
CPU Dominant Frequency
3.5GHz
Video Card
Intel UHD P750 (for monitor connection)，NVIDIA RTX 2000 Ada 16GB (for screen connection)
Video Memory
32GB DDR4 (2×16GB)
Storage Capacity
1TB M.2 NVme SSD Gen3
GPU Decording Performance
5.3GHz
Operating System Supported
Windows 11 Professional (English version)
Device Parameters
Serial Interface
1 × RS-232 port
KVM Seat
Graphics Card Expansion
Intel UHD P750 (for monitor connection) NVIDIA RTX 2000 Ada 16GB (for display connection)
