*Images are for illustrative purposes. Actual product appearance and specifications may vary.
AcuSeek NEW HOT
Discontinued
add compare icon

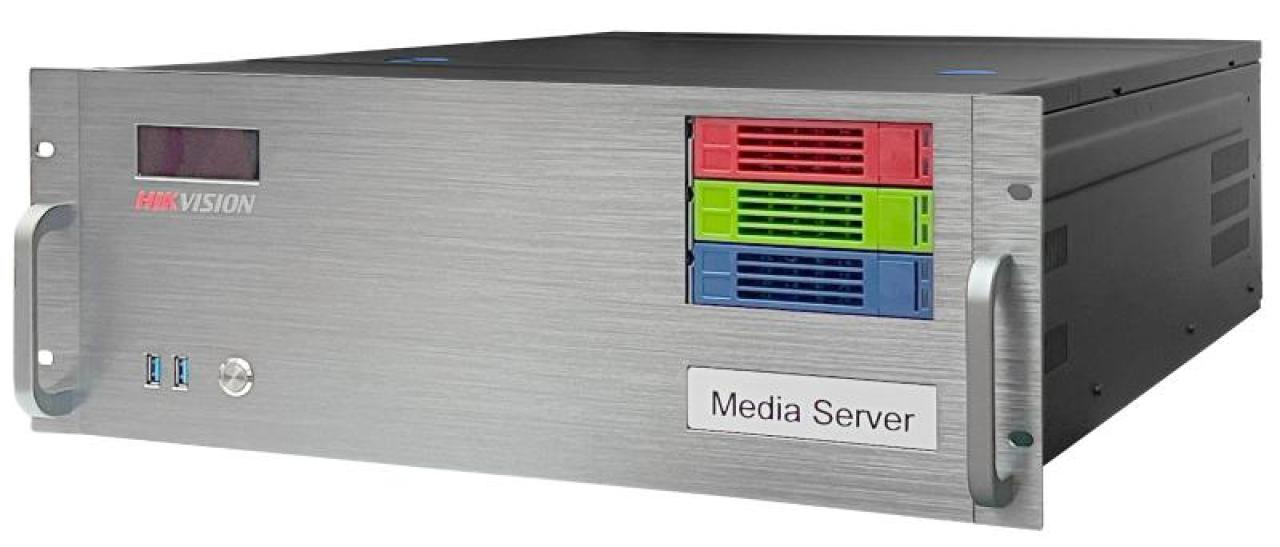

8 Output Ports Media Server

  • Supports 1 HDMI （for monitor）， 8 DP1.4 Outputs
  • Enables full-system 2*8K blended output
  • Supports EDID locking to prevent screen order misalignment when connecting external displays
  • Custom resolution support, with individual output ports supporting up to 8192 pixels in both width and height
  • Front-mounted triple 3.5" HDD bays, compatible with U.2/3 and SATA protocols
  • Supports UDP and TCP protocol control, with open protocol interfaces
  • Window-based program layout and scheduling
  • Supports slicing, virtual screen configuration, and screen rotation, suitable for irregular display shapes
  • Supports H.264, H.265, and HAP video encoding formats
  • Supports jpg, jpeg, bmp, png, gif, and image sequence decoding
  • HDR video playback supported, with SDR-to-HDR emulation
  • Equipped with water-cooled GPU for efficient thermal management
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-IVMS9530ES-UH08/I1R4
View more View Less
DS-IVMS9530ES-UH08/I1R4 Discontinued
Data Sheet

Specification

  • Product Model
  • Product ModelDS-IVMS9530ES-UH08/I1R4
  • Chassis Model4U
  • Interface
  • USB Interface6 × USB 2.0
  • Power
  • Device Power Consumption1000 W
  • Network
  • Network Interface2.5Gb RJ45 ×2
  • General
  • Working Humidity5%-95% (non-condensing)
  • Working Temperature5℃ to 35℃(40℉ to 95℉)
  • Dimensions (W × H × D)482mm (W) × 178mm (H) × 580mm (D)
  • Power Supply240 VAC,100-240V AC, 50/60Hz
  • Video Output
  • Max. Video Output ResolutionWidth 16384, Height 16384, Total 70.8MP
  • Video Output InterfacesDP1.4 × 8, HDMI2.0 × 1
  • Audio Output
  • Audio Output InterfaceStandard 3.5mm audio output
  • System
  • CPUIntel® Xeon® W5-3425, 12 cores, 24 threads, turbo boost up to 4.4GHz
  • Memory Capacity128GB DDR5-4800 RECC (4×32GB)
  • Storage Capacity3.84TB U.3 SSD NVMe Gen4
  • Video CardNVIDIA A400 4GB (for monitor connection)，NVIDIA RTX 4000 ada 20G ×2 (for screen connection)
  • Software Function
  • Operating systemWindows 11 Professional
  • Device Parameters
  • Serial Interface1 × RS-232 port
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Product Model
Product Model
DS-IVMS9530ES-UH08/I1R4
Chassis Model
4U
Interface
USB Interface
6 × USB 2.0
Power
Device Power Consumption
1000 W
Network
Network Interface
2.5Gb RJ45 ×2
General
Working Humidity
5%-95% (non-condensing)
Working Temperature
5℃ to 35℃(40℉ to 95℉)
Dimensions (W × H × D)
482mm (W) × 178mm (H) × 580mm (D)
Power Supply
240 VAC,100-240V AC, 50/60Hz
Video Output
Max. Video Output Resolution
Width 16384, Height 16384, Total 70.8MP
Video Output Interfaces
DP1.4 × 8, HDMI2.0 × 1
Audio Output
Audio Output Interface
Standard 3.5mm audio output
System
CPU
Intel® Xeon® W5-3425, 12 cores, 24 threads, turbo boost up to 4.4GHz
Memory Capacity
128GB DDR5-4800 RECC (4×32GB)
Storage Capacity
3.84TB U.3 SSD NVMe Gen4
Video Card
NVIDIA A400 4GB (for monitor connection)，NVIDIA RTX 4000 ada 20G ×2 (for screen connection)
Software Function
Operating system
Windows 11 Professional
Device Parameters
Serial Interface
1 × RS-232 port
