*Images are for illustrative purposes. Actual product appearance and specifications may vary.
AcuSeek NEW HOT
add compare icon

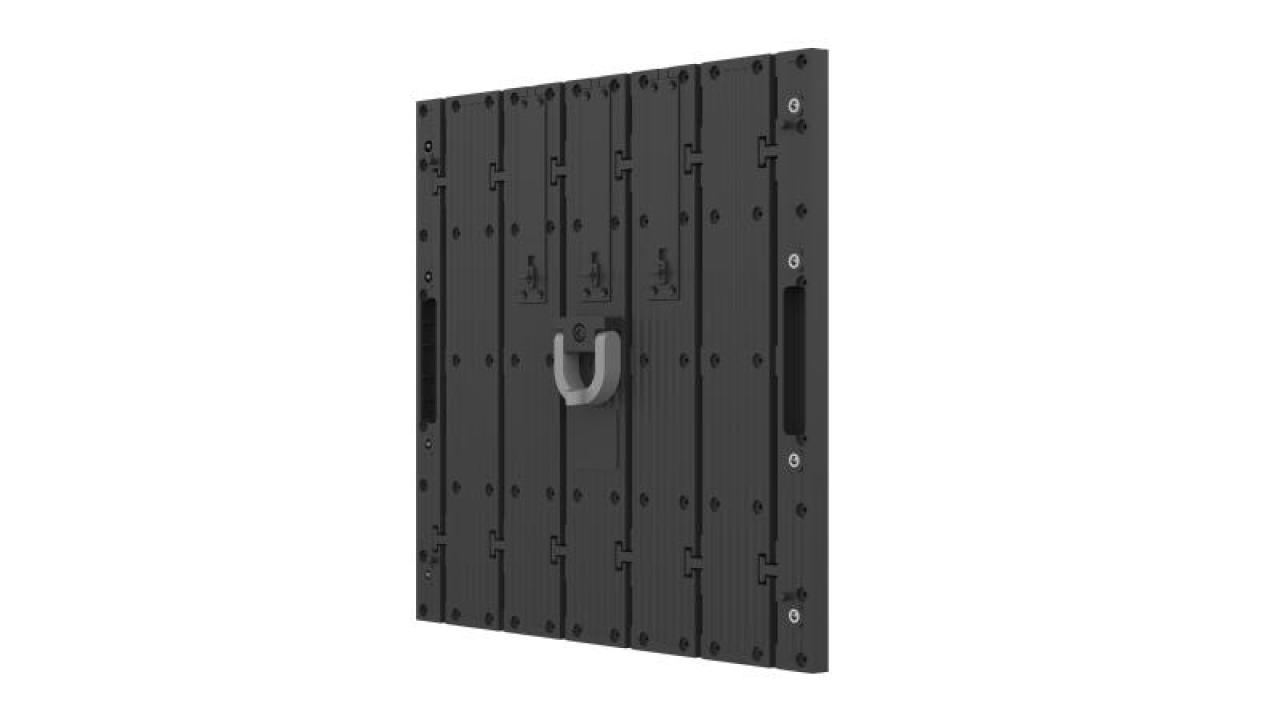

DS-D4619CE-1AS/P/M

  • Indoor P1.9/2.6/2.9 products can provide flexible version
  • Can be connected vertically with the general panels of Aries & Aries Pro series indoor of 500*500mm
  • 8 panels can be assembled into a cylinder（The minimum diameter of the cylinder is 1.27m）
  • Seamlessly from -22.5° convex to +22.5° concave in 2.5° increments, offering 18 angles to match any creative vision
View Less
View more
Sales Inquiry

Available models:

DS-D4619CE-1AS/P/M
View more View Less
DS-D4619CE-1AS/P/M

Specification

  • Product Type
  • Product TypeSpare Modules Package
  • Cabinet
  • Pixel ConfigurationSMD Triad LED
  • Pixel Pitch CategoryP1.9
  • Pixel Pitch1.9531 mm
  • Resolution128x128
  • Pixel Density262144 dots/m²
  • Lamp Board HousingWith housing
  • Maintenance MethodRear maintenance
  • Display
  • White Balance Brightness800 cd/㎡
  • Color Temperature6500K adjustable
  • Viewing AngleHorizontal 160°, vertical 140°
  • Contrast Ratio≥ 6000:1
  • Color Uniformity≤ ± 0.003Cx，Cy
  • Brightness Uniformity≥ 97％
  • Processing Performance
  • Frame Frequency50/60 Hz
  • Refresh Rate7680 Hz
  • Grey Level16 bit
  • Key Material
  • Lamp EncapsulationIMD 2 in 1
  • Control SystemHikvision
  • Working Environment
  • Working Temperature-20 ℃ to +45 ℃ (-4℉ to +113℉)
  • Working Humidity10%~90%RH (No condensation)
  • Storage Humidity10%~90%RH (No condensation)
  • Storage Temperature-40 ℃ to +60 ℃ (-40℉ to +140 ℉)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Product Type
Product Type
Spare Modules Package
Cabinet
Pixel Configuration
SMD Triad LED
Pixel Pitch Category
P1.9
Pixel Pitch
1.9531 mm
Resolution
128x128
Pixel Density
262144 dots/m²
Lamp Board Housing
With housing
Maintenance Method
Rear maintenance
Display
White Balance Brightness
800 cd/㎡
Color Temperature
6500K adjustable
Viewing Angle
Horizontal 160°, vertical 140°
Contrast Ratio
≥ 6000:1
Color Uniformity
≤ ± 0.003Cx，Cy
Brightness Uniformity
≥ 97％
Processing Performance
Frame Frequency
50/60 Hz
Refresh Rate
7680 Hz
Grey Level
16 bit
Key Material
Lamp Encapsulation
IMD 2 in 1
Control System
Hikvision
Working Environment
Working Temperature
-20 ℃ to +45 ℃ (-4℉ to +113℉)
Working Humidity
10%~90%RH (No condensation)
Storage Humidity
10%~90%RH (No condensation)
Storage Temperature
-40 ℃ to +60 ℃ (-40℉ to +140 ℉)
