AcuSeek NEW HOT
add compare icon

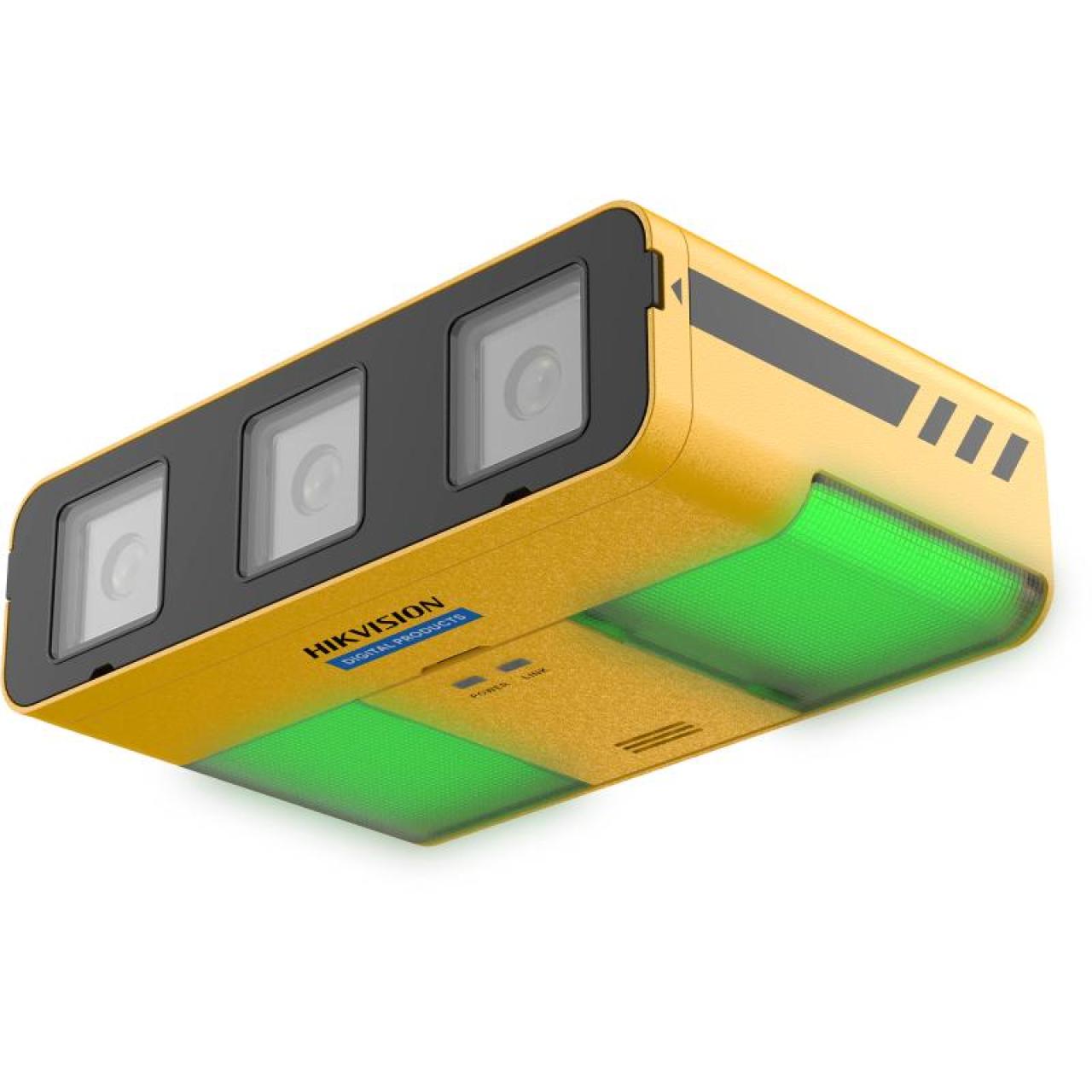

3D Perimeter Protection Camera

  • Hikvision's robotic arm anti-collision 3D vision camera features an embedded GPU module, supporting stereo vision algorithms and deep learning algorithms
  • Supports a real-time frame rate of 2560 × 2160 @ 25 fps @ 50Hz, delivering smoother images
  • It can independently capture and output two channels of stereo vision depth images, displaying them as pseudocolor images, and supports spatial stereo perception
  • Supports person detection in robotic arm working area, and outputs the number of people detected
  • With a built-in Gsensor, the device supports automatic calibration and smart calibration to acquire camera angles. It also supports angle offset alarm
  • Supports detection function via alarm input signals, allowing the person detection to be enabled or disabled in conjunction with the robotic arm's operating status
  • Supports setting multiple protective areas. Up to four customizable protective areas can be set
  • Alarm interface: 2 inputs, 4 outputs, compatible with safety relays, PLCs, and other control devices
  • The bracket that comes with the device can be installed with standard corner bracket and 40 aluminum profiles, with angle adjustment support for P-axis from -45° to 45° and T-axis from 0° to 60°
  • The device complies with CE-EMC, CE-LVD and SGS-PLd certifications
  • The device meets the IEC 61000-6-7:2014 standard
  • The device complies with ISO 13849-1:2023 PLd performance level
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-2DV6805JXB/PLD-RSG(2.8mm)
View more View Less
DS-2DV6805JXB/PLD-RSG
Data Sheet

Specification

  • Camera
  • Image Sensor1/1.8" Progressive Scan CMOS
  • Max. Resolution2560 x 2160
  • Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON),B/W: 0.0002 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
  • Shutter Time1 s to 1/100,000 s
  • Lens
  • Lens TypeFixed focal lens, 2.8 mm
  • Focal Length & FOVhorizontal FOV 88°, vertical FOV 78.3°
  • ApertureF1.6
  • Pixel Density
  • DORID: 64 m, O: 25 m, R: 12 m, I: 6 m
  • OODPCVSOverview: 81 m, Outline: 40.5 m, Discern: 20.3 m, Perceive: 13 m, Characterize: 6.5 m, Validate: 3.2 m, Scrutinize: 1.1 m .
  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 10 m
  • IR Wavelength850 nm
  • Video
  • Main Stream50 Hz：12.5 fps（2560 × 2160，1280 × 1080，1280 × 720） 60 Hz：10 fps（2560 × 2160，1280 × 1080，1280 × 720）
  • Video Compression Main Stream：H.265/H.264/Smart264/Smart265 Sub-Stream：H.265/H.264/MJPEG Third Stream：H.265/H.264 Fourth Stream：H.265/H.264
  • Video Bit Rate32 Kbps to 64 Mbps
  • H.264 TypeHigh Profile,Baseline Profile,Main Profile
  • Sub-Stream50 Hz：25 fps（2560 × 2160，640 x 480） 60 Hz：30 fps（2560 × 2160，640 x 480）
  • H.265 TypeMain Profile
  • Third Stream50 Hz：12.5fps（1280 × 1080，1280 × 720，704 × 576，640 × 480） 60 Hz：10 fps（1280 × 1080，1280 × 720，704 × 480，640 × 480）
  • Bit Rate ControlCBR,VBR
  • Fourth Stream50 Hz：12.5 fps（2560 × 2160） 60 Hz：10 fps（2560 × 2160）
  • Audio
  • Audio Compression No
  • Audio Bit RateNo
  • Audio Sampling RateNo
  • Network
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, AES128/256
  • Network StorageNAS (NFS, SMB/CIFS)
  • ClientiVMS-4200
  • Simultaneous Live ViewUp to 20 channels
  • APIONVIF, ISAPI
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
  • User/HostUp to 32 users 3 user levels: administrator, operator, and user
  • Web BrowserPlug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • Image
  • Image Settingssaturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser
  • Wide Dynamic Range (WDR)Digital WDR
  • Image EnhancementBLC,HLC
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port,1 1000M FC fiber optical interface
  • On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Reset KeyYes
  • IndicatorYes
  • Event
  • Basic Event exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Linkagenotify surveillance center,send email
  • General
  • Power24 VDC ± 25%, 0.74 A, max. 17.7 W, PoE: 802.3at, Class 4, max. 18.5 W,Ø5.5 mm coaxial power plug
  • MaterialMetal and plastic
  • Dimension190 mm × 135.5 mm × 55 mm (7.48" × 5.33" × 2.17")
  • Package Dimension269 mm × 230 mm × 196 mm (10.59" × 9.06" × 7.72")
  • Approx. 1350 g (2.98 lb.)
  • With Package WeightApprox. 3420 g (7.54 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • LanguageEnglish
  • General FunctionHeartbeat,mirror,flash log,password reset via email,pixel counter,one-key reset,password protection,anti-banding
  • Approval
  • ProtectionIP67: IEC 60529-2013
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/1.8" Progressive Scan CMOS
Max. Resolution
2560 x 2160
Min. Illumination
Color: 0.002 Lux @ (F1.2, AGC ON),B/W: 0.0002 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
Shutter Time
1 s to 1/100,000 s
Lens
Lens Type
Fixed focal lens, 2.8 mm
Focal Length & FOV
horizontal FOV 88°, vertical FOV 78.3°
Aperture
F1.6
Pixel Density
DORI
D: 64 m, O: 25 m, R: 12 m, I: 6 m
OODPCVS
Overview: 81 m, Outline: 40.5 m, Discern: 20.3 m, Perceive: 13 m, Characterize: 6.5 m, Validate: 3.2 m, Scrutinize: 1.1 m .
Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 10 m
IR Wavelength
850 nm
Video
Main Stream
50 Hz：12.5 fps（2560 × 2160，1280 × 1080，1280 × 720） 60 Hz：10 fps（2560 × 2160，1280 × 1080，1280 × 720）
Video Compression
Main Stream：H.265/H.264/Smart264/Smart265 Sub-Stream：H.265/H.264/MJPEG Third Stream：H.265/H.264 Fourth Stream：H.265/H.264
Video Bit Rate
32 Kbps to 64 Mbps
H.264 Type
High Profile,Baseline Profile,Main Profile
Sub-Stream
50 Hz：25 fps（2560 × 2160，640 x 480） 60 Hz：30 fps（2560 × 2160，640 x 480）
H.265 Type
Main Profile
Third Stream
50 Hz：12.5fps（1280 × 1080，1280 × 720，704 × 576，640 × 480） 60 Hz：10 fps（1280 × 1080，1280 × 720，704 × 480，640 × 480）
Bit Rate Control
CBR,VBR
Fourth Stream
50 Hz：12.5 fps（2560 × 2160） 60 Hz：10 fps（2560 × 2160）
Audio
Audio Compression
No
Audio Bit Rate
No
Audio Sampling Rate
No
Network
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, AES128/256
Network Storage
NAS (NFS, SMB/CIFS)
Client
iVMS-4200
Simultaneous Live View
Up to 20 channels
API
ONVIF, ISAPI
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
User/Host
Up to 32 users 3 user levels: administrator, operator, and user
Web Browser
Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Settings
saturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser
Wide Dynamic Range (WDR)
Digital WDR
Image Enhancement
BLC,HLC
Interface
Ethernet Interface
1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port,1 1000M FC fiber optical interface
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset Key
Yes
Indicator
Yes
Event
Basic Event
exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Linkage
notify surveillance center,send email
General
Power
24 VDC ± 25%, 0.74 A, max. 17.7 W, PoE: 802.3at, Class 4, max. 18.5 W,Ø5.5 mm coaxial power plug
Material
Metal and plastic
Dimension
190 mm × 135.5 mm × 55 mm (7.48" × 5.33" × 2.17")
Package Dimension
269 mm × 230 mm × 196 mm (10.59" × 9.06" × 7.72")
Approx. 1350 g (2.98 lb.)
With Package Weight
Approx. 3420 g (7.54 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
English
General Function
Heartbeat,mirror,flash log,password reset via email,pixel counter,one-key reset,password protection,anti-banding
Approval
Protection
IP67: IEC 60529-2013
