AcuSeek NEW HOT
AcuSeek
add compare icon

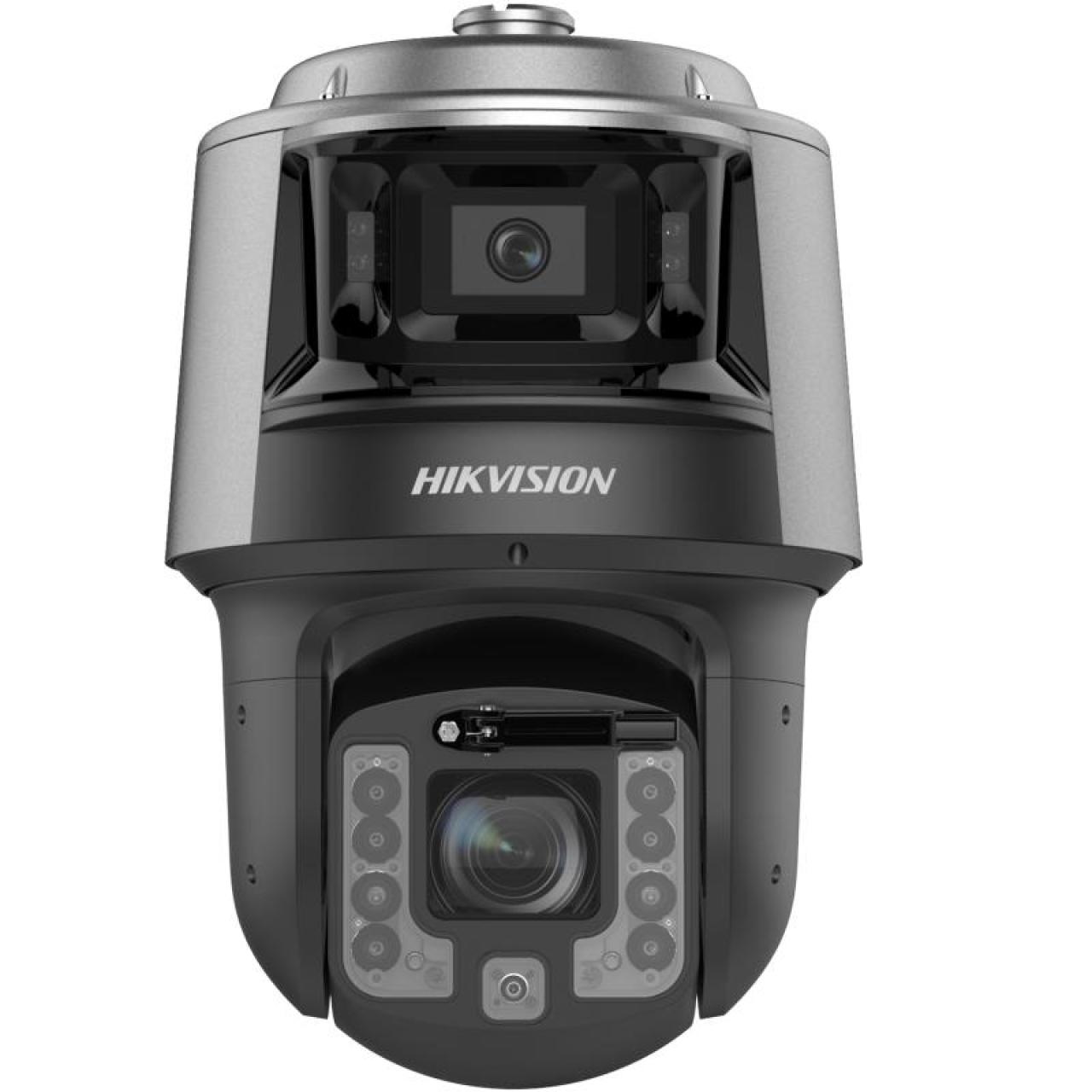

DeepinView TandemVu 7C Series 4 MP 25X DarkFighter Network Speed Dome

  • Captures a large area and great details at the same time
  • High quality imaging with 4 MP resolution for bullet channel
  • 24/7 colorful imaging and excellent low-light performance with DarkFighter 2.0 technology
  • Bullet channel tilt adjustable from 7° to 17°
  • Secures an expansive area with 25 × optical zoom and 16 × digital zoom
  • Expansive night view with up to 30 m white light distance and 400 m IR distance
  • Supports deep learning functions
  • Water and dust resistant (IP67) and vandal resistant (IK10) excluding glass window
  • Smart Pan-Tilt Correction
  • Audio visual alarm: The white flashing light and audible warning can be triggered by certain events

View Less
View more
DS-2SF7C425MXG1-ELW/14(B)
DS-2SF7C425MXG1-ELY/14(B)
DS-2SF7C425MXG1-EL/14(B)
DS-2SF7C425MXG1-ELWY/14(B)
Data Sheet
Sales Inquiry

Available models:

DS-2SF7C425MXG1-ELW/14(F1)(B)
View more View Less

Available models:

DS-2SF7C425MXG1-ELY/14(F1)(B)
View more View Less

Available models:

DS-2SF7C425MXG1-EL/14(F1)(B)
View more View Less

Available models:

DS-2SF7C425MXG1-ELWY/14(F1)(B)
View more View Less
DS-2SF7C425MXG1-EL(W)(Y)/14 AcuSeek
Data Sheet

Specification

  • Camera
  • Image Sensor [Panoramic channel] 1/1.8" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS
  • Min. Illumination [Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR, [PTZ channel] Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON)
  • Shutter Speed 1/25 s to 1/30000 s
  • Slow Shutter Yes
  • Day & Night [Bullet channel] Color, [PTZ channel] IR cut filter
  • Zoom [PTZ channel] 25 × optical, 16 × digital
  • Max. Resolution [Bullet channel] 2688 × 1520, [PTZ channel] 2688 × 1520
  • Lens
  • Focus Auto,semi-auto,manual
  • Zoom Speed [Bullet channel] No, [PTZ channel] approx. 4.8 s
  • Focal Length [Bullet channel] 4 mm, [PTZ channel] 5.9 to 147.5 mm
  • FOV [Bullet channel] horizontal field of view: 89° ± 5°°, vertical field of view: 45° ± 5°°, diagonal field of view: 107° ± 5°°, [PTZ channel] horizontal field of view: 60.2° to 2.3°, vertical field of view: 35.2° to 1.3°, diagonal field of view: 67.4° to 2.6°
  • Aperture [Bullet channel] F1.0, [PTZ channel] F1.5
  • Illuminator
  • Supplement Light Type [Bullet channel] White Light and IR, [PTZ channel] IR
  • Supplement Light Range [Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 400 m
  • Smart Supplement Light Yes
  • PTZ
  • Movement Range (Pan) [PTZ channel] 0° to 360°
  • Movement Range (Tilt) [Bullet channel] 7° to 17°, [PTZ channel] -20° to 90°
  • Pan Speed [PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
  • Tilt Speed [Bullet channel] tilt speed configurable,[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
  • Proportional Pan [Bullet channel] No, [PTZ channel] Yes
  • Presets 300
  • Patrol Scan 8 patrols, up to 32 presets for each patrol
  • Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
  • Power-off Memory Yes
  • Park Action Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
  • 3D Positioning Yes
  • PTZ Status Display Yes
  • Preset Freezing Yes
  • Scheduled Task Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
  • DORI
  • O2DCPVS [Bullet channel] Overview: 69 m, Outline: 34.5 m, Discern: 17.2 m, Perceive: 11 m, Characterize: 5.5 m, Validate: 2.8 m, Scrutinize: 0.9 m [PTZ channel] Wide: Overview: 101.7 m, Outline: 50.9 m, Discern: 25.4 m, Perceive: 16.3 m, Characterize: 8.1 m, Validate: 4.1 m, Scrutinize: 1.4 m Tele: Overview: 2543.1 m, Outline: 1271.6 m, Discern: 635.8 m, Perceive: 406.9 m, Characterize: 203.4 m, Validate: 101.7 m, Scrutinize: 33.9 m The OODPCVS values are calculated using pixel densities for different use cases as recommended by the IEC/EN 62676-4: 2025 standard. IEC 62676-4:2025 describes the planning, design, installation, testing, commissioning, and maintaining of video surveillance systems (VSS) comprising image capture device(s), interconnection(s) and image handling device(s), for use in security applications within private or public spaces.
  • Video
  • Main Stream [Bullet channel] 50 Hz: 25 fps (2688 × 1520, 2560 × 1440，1920 × 1080,1280 × 960,1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440，1920 × 1080,1280 × 960,1280 × 720) [PTZ channel] 50 Hz: 50 fps ( 2688 × 1520，2560 × 1440 , 1920 x 1080，1280 x 960), 100 fps (1280 × 720) 60 Hz: 60 fps ( 2688 × 1520，2560 × 1440 , 1920 x 1080，1280 x 960), 120 fps (1280 × 720) *High frame rate is supported under monitoring mode only.
  • Sub-Stream [Bullet channel] 50 Hz: 25 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (704 × 480，640 × 480，352 × 240),[PTZ channel] 50 Hz: 25 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (704 × 480，640 × 480，352 × 240)
  • Third Stream [Bullet channel] 50 Hz: 25 fps (1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240),[PTZ channel] 50 Hz: 25 fps (1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG
  • Video Bit Rate 32 Kbps to 16 Mbps
  • H.264 Type Baseline profile,Main profile,High profile
  • H.265 Type Main profile
  • Scalable Video Coding (SVC) H.264 and H.265 encoding
  • Region of Interest (ROI) 8 fixed regions for each stream
  • Audio
  • Audio Compression G.711,MP2L2,AAC-LC,MP3,G.726,G.722.1,PCM
  • Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3),16 Kbps (G.726),16 Kbps (G.722.1)
  • Audio Sampling Rate 8 kHz,16 kHz,32 kHz,48 kHz
  • Environment Noise Filtering Yes
  • Network
  • Protocols DHCP,RTP,SMTP,DNS,WebSocket,ICMP,HTTPS,RTSP,QoS,SSL/TLS,RTCP,PPPoE,NTP,IGMP,UDP,FTP,WebSockets,SNMP,HTTP,DDNS,IPv4,UPnP,SFTP,TCP/IP,802.1X,IPv6
  • API ISAPI,SDK,ISUP,ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)，OTAP
  • Security Password protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TLS 1.2
  • Network Storage NAS (NFS, SMB/CIFS),auto network replenishment (ANR)
  • Simultaneous Live View Up to 20 channels
  • User/Host Up to 32 users. 3 user levels: administrator, operator, and user
  • Client iVMS-4200,HikCentral Pro,Hik-Connect
  • Web Browser Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+； Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • AI Open Platform
  • Model Specification Model type for AI Open Platform trained algorithm loading: high-performance model (small model).↵ Supports 4 model packages, each capable of detecting 16 target types and classifying 4 targets. The targets can be classified as 64 types. The device runs only 1 model at the same time.
  • Task Type Algorithm type for AI Open Platform high-performance model (small model): Detection, Classification.
  • Event Type Region target exception status detection, region target number counting, area overlap ratio counting, area overlap ratio exception detection, area status change detection, line crossing target detection, line crossing target counting, OCR trigger, full analysis rule, combined rule
  • Rule Setting Up to 16 rules. Supports moving target filtering and shield region setting.
  • Image
  • Day/Night Switch schedule,Day,auto,night
  • Image Enhancement 3D DNR,HLC,BLC,EIS
  • Wide Dynamic Range (WDR) [Bullet channel] 120 dB, [PTZ channel] 150 dB
  • Defog Digital defog
  • Image Stabilization EIS (Built-in gyroscope to improve EIS performance)
  • Regional Exposure Yes
  • Regional Focus [Bullet channel] No, [PTZ channel] Yes
  • Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
  • Image Parameters Switch Yes
  • Privacy Mask [Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
  • SNR ≥ 52 dB
  • Supplement Detection
  • Satellite Positioning No
  • Gyroscope Yes
  • Compass No
  • Interface
  • Reset Yes
  • Ethernet Interface 1 RJ45 100M self-adaptive Ethernet port
  • On-board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1TB .
  • Alarm 7 input(s), 2 output(s)
  • Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω
  • RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Event
  • Basic Event [PTZ channel] video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
  • Smart Event unattended baggage detection,object removal detection,people gathering detection,fast moving detection,loitering detection,Line crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection,parking detection
  • Linkage [Bullet channel] no,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
  • Deep Learning Function
  • Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
  • Multi-Target-Type Detection Supports simultaneous detection and capture of human body, face and vehicle
  • Face Capture Detects up to 30 faces simultaneously, Uploads face with background and closed-up face pictures
  • Face Comparison Up to 10 face libraries. 30000 faces for each library. 150000 faces in total
  • Road Traffic and Vehicle Detection Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Blocklist and allowlist: up to 10,000 records LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98% Capture rate ≥99% Driving direction accuracy rate ≥98% Vehicle Capture Speed: Front installation in checkpoint scenario: up to 120 km/h Side installation: up to 80 km/h Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
  • People Density Supports detecting the level of people density in the configured area,[PTZ channel]: no, [Panoramic channel]: yes
  • Intelligent Transportation System Traffic Violation Evidence Collection: • PTZ camera channels support detection of six types of violations: wrongly parking, wrong-way driving, crossing the line, lane change, motor vehicle on non-motor vehicle lane, and U-turns. • Box camera channels support detection of five types of violations: wrong-way driving, driving on the lane line, lane change, motor vehicle on non-motor vehicle lane, and U-turns. Traffic Data Collection: Supports the collection of traffic flow, lane average speed, time headway, space headway, lane time occupancy, and lane space occupancy information. Traffic Flow Road incident detection: (1)Road incident detection for highways and elevated roads: The PTZ camera suppoorts fallen object detection, pedestrian detection, congestion detection, roadblock detection, construction detection, traffic accident detection; The box camera supports pedestrian detection, parking detction, congestion detection, roadblock detection, construction detection, traffic accident detection. (2)Road incident detection for urban roads: The PTZ camera suppoorts congestion detection, roadblock detection, construction detection, traffic accident detection; The box camera supports parking detction, congestion detection, roadblock detection, construction detection, traffic accident detection.
  • Regional People Counting Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection Supports parameter settings: alarm times per exception, alarm interval, first alarm delay Supports searching real-time number of people People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B) Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)
  • Linkage and Tracking
  • Smart Tracking Manual tracking, auto-tracking 3.0
  • Smart Linkage Manual tracking, auto tracking, tracking takeover, linked tracking capture
  • Object Tracking Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.
  • General
  • Power 36 VDC± 20%, max. 60 W (Max. 54W, including max. 15 W for IR and max. 8 W for heater) PoE 802.3bt, type4, class8, max. 90W (Max. 60 W, including max. 15 W for IR and max. 8 W for heater)
  • General Function mirror,password protection
  • Operating Condition -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing)
  • Wiper Yes
  • Demist Yes
  • Material ADC12
  • Dimension Ø260 mm × 382.9 mm (Ø10.24" × 15.07")
  • Approx. 8.1 kg (17.86 lb.)
  • Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Approval
  • EMC CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021)
  • Safety CE-LVD (EN 62368-1:2014 + A11:2017),CB (IEC 62368-1:2014)
  • Environment CE-RoHS (2011/65/EU and its amendment (EU)2015/863)
  • Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013),IK10 (IEC 62262:2002, excluding glass window),Lightning Protection,Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line
  • Anti-Corrosion Protection Model with -Y: NEMA 4X (NEMA 250-2018), Model without -Y: No
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
[Panoramic channel] 1/1.8" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS
Min. Illumination
[Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR, [PTZ channel] Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON)
Shutter Speed
1/25 s to 1/30000 s
Slow Shutter
Yes
Day & Night
[Bullet channel] Color, [PTZ channel] IR cut filter
Zoom
[PTZ channel] 25 × optical, 16 × digital
Max. Resolution
[Bullet channel] 2688 × 1520, [PTZ channel] 2688 × 1520
Lens
Focus
Auto,semi-auto,manual
Zoom Speed
[Bullet channel] No, [PTZ channel] approx. 4.8 s
Focal Length
[Bullet channel] 4 mm, [PTZ channel] 5.9 to 147.5 mm
FOV
[Bullet channel] horizontal field of view: 89° ± 5°°, vertical field of view: 45° ± 5°°, diagonal field of view: 107° ± 5°°, [PTZ channel] horizontal field of view: 60.2° to 2.3°, vertical field of view: 35.2° to 1.3°, diagonal field of view: 67.4° to 2.6°
Aperture
[Bullet channel] F1.0, [PTZ channel] F1.5
Illuminator
Supplement Light Type
[Bullet channel] White Light and IR, [PTZ channel] IR
Supplement Light Range
[Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 400 m
Smart Supplement Light
Yes
PTZ
Movement Range (Pan)
[PTZ channel] 0° to 360°
Movement Range (Tilt)
[Bullet channel] 7° to 17°, [PTZ channel] -20° to 90°
Pan Speed
[PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
Tilt Speed
[Bullet channel] tilt speed configurable,[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional Pan
[Bullet channel] No, [PTZ channel] Yes
Presets
300
Patrol Scan
8 patrols, up to 32 presets for each patrol
Pattern Scan
4 pattern scans, record time over 10 minutes for each scan
Power-off Memory
Yes
Park Action
Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
3D Positioning
Yes
PTZ Status Display
Yes
Preset Freezing
Yes
Scheduled Task
Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
DORI
O2DCPVS
[Bullet channel] Overview: 69 m, Outline: 34.5 m, Discern: 17.2 m, Perceive: 11 m, Characterize: 5.5 m, Validate: 2.8 m, Scrutinize: 0.9 m [PTZ channel] Wide: Overview: 101.7 m, Outline: 50.9 m, Discern: 25.4 m, Perceive: 16.3 m, Characterize: 8.1 m, Validate: 4.1 m, Scrutinize: 1.4 m Tele: Overview: 2543.1 m, Outline: 1271.6 m, Discern: 635.8 m, Perceive: 406.9 m, Characterize: 203.4 m, Validate: 101.7 m, Scrutinize: 33.9 m The OODPCVS values are calculated using pixel densities for different use cases as recommended by the IEC/EN 62676-4: 2025 standard. IEC 62676-4:2025 describes the planning, design, installation, testing, commissioning, and maintaining of video surveillance systems (VSS) comprising image capture device(s), interconnection(s) and image handling device(s), for use in security applications within private or public spaces.
Video
Main Stream
[Bullet channel] 50 Hz: 25 fps (2688 × 1520, 2560 × 1440，1920 × 1080,1280 × 960,1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440，1920 × 1080,1280 × 960,1280 × 720) [PTZ channel] 50 Hz: 50 fps ( 2688 × 1520，2560 × 1440 , 1920 x 1080，1280 x 960), 100 fps (1280 × 720) 60 Hz: 60 fps ( 2688 × 1520，2560 × 1440 , 1920 x 1080，1280 x 960), 120 fps (1280 × 720) *High frame rate is supported under monitoring mode only.
Sub-Stream
[Bullet channel] 50 Hz: 25 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (704 × 480，640 × 480，352 × 240),[PTZ channel] 50 Hz: 25 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (704 × 480，640 × 480，352 × 240)
Third Stream
[Bullet channel] 50 Hz: 25 fps (1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240),[PTZ channel] 50 Hz: 25 fps (1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline profile,Main profile,High profile
H.265 Type
Main profile
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
8 fixed regions for each stream
Audio
Audio Compression
G.711,MP2L2,AAC-LC,MP3,G.726,G.722.1,PCM
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3),16 Kbps (G.726),16 Kbps (G.722.1)
Audio Sampling Rate
8 kHz,16 kHz,32 kHz,48 kHz
Environment Noise Filtering
Yes
Network
Protocols
DHCP,RTP,SMTP,DNS,WebSocket,ICMP,HTTPS,RTSP,QoS,SSL/TLS,RTCP,PPPoE,NTP,IGMP,UDP,FTP,WebSockets,SNMP,HTTP,DDNS,IPv4,UPnP,SFTP,TCP/IP,802.1X,IPv6
API
ISAPI,SDK,ISUP,ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)，OTAP
Security
Password protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TLS 1.2
Network Storage
NAS (NFS, SMB/CIFS),auto network replenishment (ANR)
Simultaneous Live View
Up to 20 channels
User/Host
Up to 32 users. 3 user levels: administrator, operator, and user
Client
iVMS-4200,HikCentral Pro,Hik-Connect
Web Browser
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+； Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
AI Open Platform
Model Specification
Model type for AI Open Platform trained algorithm loading: high-performance model (small model).↵ Supports 4 model packages, each capable of detecting 16 target types and classifying 4 targets. The targets can be classified as 64 types. The device runs only 1 model at the same time.
Task Type
Algorithm type for AI Open Platform high-performance model (small model): Detection, Classification.
Event Type
Region target exception status detection, region target number counting, area overlap ratio counting, area overlap ratio exception detection, area status change detection, line crossing target detection, line crossing target counting, OCR trigger, full analysis rule, combined rule
Rule Setting
Up to 16 rules. Supports moving target filtering and shield region setting.
Day/Night Switch
schedule,Day,auto,night
Image Enhancement
3D DNR,HLC,BLC,EIS
Wide Dynamic Range (WDR)
[Bullet channel] 120 dB, [PTZ channel] 150 dB
Defog
Digital defog
Image Stabilization
EIS (Built-in gyroscope to improve EIS performance)
Regional Exposure
Yes
Regional Focus
[Bullet channel] No, [PTZ channel] Yes
Image Settings
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Image Parameters Switch
Yes
Privacy Mask
[Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
SNR
≥ 52 dB
Supplement Detection
Satellite Positioning
No
Gyroscope
Yes
Compass
No
Interface
Reset
Yes
Ethernet Interface
1 RJ45 100M self-adaptive Ethernet port
On-board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1TB .
Alarm
7 input(s), 2 output(s)
Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω
RS-485
1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Event
Basic Event
[PTZ channel] video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
Smart Event
unattended baggage detection,object removal detection,people gathering detection,fast moving detection,loitering detection,Line crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection,parking detection
Linkage
[Bullet channel] no,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
Deep Learning Function
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
Multi-Target-Type Detection
Supports simultaneous detection and capture of human body, face and vehicle
Face Capture
Detects up to 30 faces simultaneously, Uploads face with background and closed-up face pictures
Face Comparison
Up to 10 face libraries. 30000 faces for each library. 150000 faces in total
Road Traffic and Vehicle Detection
Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Blocklist and allowlist: up to 10,000 records LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98% Capture rate ≥99% Driving direction accuracy rate ≥98% Vehicle Capture Speed: Front installation in checkpoint scenario: up to 120 km/h Side installation: up to 80 km/h Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
People Density
Supports detecting the level of people density in the configured area,[PTZ channel]: no, [Panoramic channel]: yes
Intelligent Transportation System
Traffic Violation Evidence Collection: • PTZ camera channels support detection of six types of violations: wrongly parking, wrong-way driving, crossing the line, lane change, motor vehicle on non-motor vehicle lane, and U-turns. • Box camera channels support detection of five types of violations: wrong-way driving, driving on the lane line, lane change, motor vehicle on non-motor vehicle lane, and U-turns. Traffic Data Collection: Supports the collection of traffic flow, lane average speed, time headway, space headway, lane time occupancy, and lane space occupancy information. Traffic Flow Road incident detection: (1)Road incident detection for highways and elevated roads: The PTZ camera suppoorts fallen object detection, pedestrian detection, congestion detection, roadblock detection, construction detection, traffic accident detection; The box camera supports pedestrian detection, parking detction, congestion detection, roadblock detection, construction detection, traffic accident detection. (2)Road incident detection for urban roads: The PTZ camera suppoorts congestion detection, roadblock detection, construction detection, traffic accident detection; The box camera supports parking detction, congestion detection, roadblock detection, construction detection, traffic accident detection.
Regional People Counting
Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection Supports parameter settings: alarm times per exception, alarm interval, first alarm delay Supports searching real-time number of people People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B) Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)
Linkage and Tracking
Smart Tracking
Manual tracking, auto-tracking 3.0
Smart Linkage
Manual tracking, auto tracking, tracking takeover, linked tracking capture
Object Tracking
Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.
General
Power
36 VDC± 20%, max. 60 W (Max. 54W, including max. 15 W for IR and max. 8 W for heater) PoE 802.3bt, type4, class8, max. 90W (Max. 60 W, including max. 15 W for IR and max. 8 W for heater)
General Function
mirror,password protection
Operating Condition
-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing)
Wiper
Yes
Demist
Yes
Material
ADC12
Dimension
Ø260 mm × 382.9 mm (Ø10.24" × 15.07")
Approx. 8.1 kg (17.86 lb.)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Approval
EMC
CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021)
Safety
CE-LVD (EN 62368-1:2014 + A11:2017),CB (IEC 62368-1:2014)
Environment
CE-RoHS (2011/65/EU and its amendment (EU)2015/863)
Protection
IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013),IK10 (IEC 62262:2002, excluding glass window),Lightning Protection,Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line
Anti-Corrosion Protection
Model with -Y: NEMA 4X (NEMA 250-2018), Model without -Y: No
For better user experience, we highly recommend you to update your device to the latest firmware asap.

Resources

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.10.0_260727
IPDG_XLF_H13H11_V5.10.0 Release Note
Applied to:
DS-2SF7C425MXG1-ELW/14(F1)(B)

Specification

  • Camera
  • Image Sensor [Panoramic channel] 1/1.8" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS
  • Min. Illumination [Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR, [PTZ channel] Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON)
  • Shutter Speed 1/25 s to 1/30000 s
  • Slow Shutter Yes
  • Day & Night [Bullet channel] Color, [PTZ channel] IR cut filter
  • Zoom [PTZ channel] 25 × optical, 16 × digital
  • Max. Resolution [Bullet channel] 2688 × 1520, [PTZ channel] 2688 × 1520
  • Lens
  • Focus Auto,semi-auto,manual
  • Zoom Speed [Bullet channel] No, [PTZ channel] approx. 4.8 s
  • Focal Length [Bullet channel] 4 mm, [PTZ channel] 5.9 to 147.5 mm
  • FOV [Bullet channel] horizontal field of view: 89° ± 5°°, vertical field of view: 45° ± 5°°, diagonal field of view: 107° ± 5°°, [PTZ channel] horizontal field of view: 60.2° to 2.3°, vertical field of view: 35.2° to 1.3°, diagonal field of view: 67.4° to 2.6°
  • Aperture [Bullet channel] F1.0, [PTZ channel] F1.5
  • Illuminator
  • Supplement Light Type [Bullet channel] White Light and IR, [PTZ channel] IR
  • Supplement Light Range [Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 400 m
  • Smart Supplement Light Yes
  • PTZ
  • Movement Range (Pan) [PTZ channel] 0° to 360°
  • Movement Range (Tilt) [Bullet channel] 7° to 17°, [PTZ channel] -20° to 90°
  • Pan Speed [PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
  • Tilt Speed [Bullet channel] tilt speed configurable,[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
  • Proportional Pan [Bullet channel] No, [PTZ channel] Yes
  • Presets 300
  • Patrol Scan 8 patrols, up to 32 presets for each patrol
  • Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
  • Power-off Memory Yes
  • Park Action Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
  • 3D Positioning Yes
  • PTZ Status Display Yes
  • Preset Freezing Yes
  • Scheduled Task Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
  • DORI
  • O2DCPVS [Bullet channel] Overview: 69 m, Outline: 34.5 m, Discern: 17.2 m, Perceive: 11 m, Characterize: 5.5 m, Validate: 2.8 m, Scrutinize: 0.9 m [PTZ channel] Wide: Overview: 101.7 m, Outline: 50.9 m, Discern: 25.4 m, Perceive: 16.3 m, Characterize: 8.1 m, Validate: 4.1 m, Scrutinize: 1.4 m Tele: Overview: 2543.1 m, Outline: 1271.6 m, Discern: 635.8 m, Perceive: 406.9 m, Characterize: 203.4 m, Validate: 101.7 m, Scrutinize: 33.9 m The OODPCVS values are calculated using pixel densities for different use cases as recommended by the IEC/EN 62676-4: 2025 standard. IEC 62676-4:2025 describes the planning, design, installation, testing, commissioning, and maintaining of video surveillance systems (VSS) comprising image capture device(s), interconnection(s) and image handling device(s), for use in security applications within private or public spaces.
  • Video
  • Main Stream [Bullet channel] 50 Hz: 25 fps (2688 × 1520, 2560 × 1440，1920 × 1080,1280 × 960,1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440，1920 × 1080,1280 × 960,1280 × 720) [PTZ channel] 50 Hz: 50 fps ( 2688 × 1520，2560 × 1440 , 1920 x 1080，1280 x 960), 100 fps (1280 × 720) 60 Hz: 60 fps ( 2688 × 1520，2560 × 1440 , 1920 x 1080，1280 x 960), 120 fps (1280 × 720) *High frame rate is supported under monitoring mode only.
  • Sub-Stream [Bullet channel] 50 Hz: 25 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (704 × 480，640 × 480，352 × 240),[PTZ channel] 50 Hz: 25 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (704 × 480，640 × 480，352 × 240)
  • Third Stream [Bullet channel] 50 Hz: 25 fps (1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240),[PTZ channel] 50 Hz: 25 fps (1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG
  • Video Bit Rate 32 Kbps to 16 Mbps
  • H.264 Type Baseline profile,Main profile,High profile
  • H.265 Type Main profile
  • Scalable Video Coding (SVC) H.264 and H.265 encoding
  • Region of Interest (ROI) 8 fixed regions for each stream
  • Audio
  • Audio Compression G.711,MP2L2,AAC-LC,MP3,G.726,G.722.1,PCM
  • Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3),16 Kbps (G.726),16 Kbps (G.722.1)
  • Audio Sampling Rate 8 kHz,16 kHz,32 kHz,48 kHz
  • Environment Noise Filtering Yes
  • Network
  • Protocols DHCP,RTP,SMTP,DNS,WebSocket,ICMP,HTTPS,RTSP,QoS,SSL/TLS,RTCP,PPPoE,NTP,IGMP,UDP,FTP,WebSockets,SNMP,HTTP,DDNS,IPv4,UPnP,SFTP,TCP/IP,802.1X,IPv6
  • API ISAPI,SDK,ISUP,ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)，OTAP
  • Security Password protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TLS 1.2
  • Network Storage NAS (NFS, SMB/CIFS),auto network replenishment (ANR)
  • Simultaneous Live View Up to 20 channels
  • User/Host Up to 32 users. 3 user levels: administrator, operator, and user
  • Client iVMS-4200,HikCentral Pro,Hik-Connect
  • Web Browser Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+； Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • AI Open Platform
  • Model Specification Model type for AI Open Platform trained algorithm loading: high-performance model (small model).↵ Supports 4 model packages, each capable of detecting 16 target types and classifying 4 targets. The targets can be classified as 64 types. The device runs only 1 model at the same time.
  • Task Type Algorithm type for AI Open Platform high-performance model (small model): Detection, Classification.
  • Event Type Region target exception status detection, region target number counting, area overlap ratio counting, area overlap ratio exception detection, area status change detection, line crossing target detection, line crossing target counting, OCR trigger, full analysis rule, combined rule
  • Rule Setting Up to 16 rules. Supports moving target filtering and shield region setting.
  • Image
  • Day/Night Switch schedule,Day,auto,night
  • Image Enhancement 3D DNR,HLC,BLC,EIS
  • Wide Dynamic Range (WDR) [Bullet channel] 120 dB, [PTZ channel] 150 dB
  • Defog Digital defog
  • Image Stabilization EIS (Built-in gyroscope to improve EIS performance)
  • Regional Exposure Yes
  • Regional Focus [Bullet channel] No, [PTZ channel] Yes
  • Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
  • Image Parameters Switch Yes
  • Privacy Mask [Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
  • SNR ≥ 52 dB
  • Supplement Detection
  • Satellite Positioning No
  • Gyroscope Yes
  • Compass No
  • Interface
  • Reset Yes
  • Ethernet Interface 1 RJ45 100M self-adaptive Ethernet port
  • On-board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1TB .
  • Alarm 7 input(s), 2 output(s)
  • Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω
  • RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Event
  • Basic Event [PTZ channel] video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
  • Smart Event unattended baggage detection,object removal detection,people gathering detection,fast moving detection,loitering detection,Line crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection,parking detection
  • Linkage [Bullet channel] no,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
  • Deep Learning Function
  • Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
  • Multi-Target-Type Detection Supports simultaneous detection and capture of human body, face and vehicle
  • Face Capture Detects up to 30 faces simultaneously, Uploads face with background and closed-up face pictures
  • Face Comparison Up to 10 face libraries. 30000 faces for each library. 150000 faces in total
  • Road Traffic and Vehicle Detection Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Blocklist and allowlist: up to 10,000 records LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98% Capture rate ≥99% Driving direction accuracy rate ≥98% Vehicle Capture Speed: Front installation in checkpoint scenario: up to 120 km/h Side installation: up to 80 km/h Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
  • People Density Supports detecting the level of people density in the configured area,[PTZ channel]: no, [Panoramic channel]: yes
  • Intelligent Transportation System Traffic Violation Evidence Collection: • PTZ camera channels support detection of six types of violations: wrongly parking, wrong-way driving, crossing the line, lane change, motor vehicle on non-motor vehicle lane, and U-turns. • Box camera channels support detection of five types of violations: wrong-way driving, driving on the lane line, lane change, motor vehicle on non-motor vehicle lane, and U-turns. Traffic Data Collection: Supports the collection of traffic flow, lane average speed, time headway, space headway, lane time occupancy, and lane space occupancy information. Traffic Flow Road incident detection: (1)Road incident detection for highways and elevated roads: The PTZ camera suppoorts fallen object detection, pedestrian detection, congestion detection, roadblock detection, construction detection, traffic accident detection; The box camera supports pedestrian detection, parking detction, congestion detection, roadblock detection, construction detection, traffic accident detection. (2)Road incident detection for urban roads: The PTZ camera suppoorts congestion detection, roadblock detection, construction detection, traffic accident detection; The box camera supports parking detction, congestion detection, roadblock detection, construction detection, traffic accident detection.
  • Regional People Counting Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection Supports parameter settings: alarm times per exception, alarm interval, first alarm delay Supports searching real-time number of people People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B) Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)
  • Linkage and Tracking
  • Smart Tracking Manual tracking, auto-tracking 3.0
  • Smart Linkage Manual tracking, auto tracking, tracking takeover, linked tracking capture
  • Object Tracking Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.
  • General
  • Power 36 VDC± 20%, max. 60 W (Max. 54W, including max. 15 W for IR and max. 8 W for heater) PoE 802.3bt, type4, class8, max. 90W (Max. 60 W, including max. 15 W for IR and max. 8 W for heater)
  • General Function mirror,password protection
  • Operating Condition -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing)
  • Wiper Yes
  • Demist Yes
  • Material ADC12
  • Dimension Ø260 mm × 382.9 mm (Ø10.24" × 15.07")
  • Approx. 8.1 kg (17.86 lb.)
  • Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Approval
  • EMC CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021)
  • Safety CE-LVD (EN 62368-1:2014 + A11:2017),CB (IEC 62368-1:2014)
  • Environment CE-RoHS (2011/65/EU and its amendment (EU)2015/863)
  • Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013),IK10 (IEC 62262:2002, excluding glass window),Lightning Protection,Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line
  • Anti-Corrosion Protection Model with -Y: NEMA 4X (NEMA 250-2018), Model without -Y: No
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
[Panoramic channel] 1/1.8" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS
Min. Illumination
[Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR, [PTZ channel] Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON)
Shutter Speed
1/25 s to 1/30000 s
Slow Shutter
Yes
Day & Night
[Bullet channel] Color, [PTZ channel] IR cut filter
Zoom
[PTZ channel] 25 × optical, 16 × digital
Max. Resolution
[Bullet channel] 2688 × 1520, [PTZ channel] 2688 × 1520
Lens
Focus
Auto,semi-auto,manual
Zoom Speed
[Bullet channel] No, [PTZ channel] approx. 4.8 s
Focal Length
[Bullet channel] 4 mm, [PTZ channel] 5.9 to 147.5 mm
FOV
[Bullet channel] horizontal field of view: 89° ± 5°°, vertical field of view: 45° ± 5°°, diagonal field of view: 107° ± 5°°, [PTZ channel] horizontal field of view: 60.2° to 2.3°, vertical field of view: 35.2° to 1.3°, diagonal field of view: 67.4° to 2.6°
Aperture
[Bullet channel] F1.0, [PTZ channel] F1.5
Illuminator
Supplement Light Type
[Bullet channel] White Light and IR, [PTZ channel] IR
Supplement Light Range
[Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 400 m
Smart Supplement Light
Yes
PTZ
Movement Range (Pan)
[PTZ channel] 0° to 360°
Movement Range (Tilt)
[Bullet channel] 7° to 17°, [PTZ channel] -20° to 90°
Pan Speed
[PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
Tilt Speed
[Bullet channel] tilt speed configurable,[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional Pan
[Bullet channel] No, [PTZ channel] Yes
Presets
300
Patrol Scan
8 patrols, up to 32 presets for each patrol
Pattern Scan
4 pattern scans, record time over 10 minutes for each scan
Power-off Memory
Yes
Park Action
Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
3D Positioning
Yes
PTZ Status Display
Yes
Preset Freezing
Yes
Scheduled Task
Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
DORI
O2DCPVS
[Bullet channel] Overview: 69 m, Outline: 34.5 m, Discern: 17.2 m, Perceive: 11 m, Characterize: 5.5 m, Validate: 2.8 m, Scrutinize: 0.9 m [PTZ channel] Wide: Overview: 101.7 m, Outline: 50.9 m, Discern: 25.4 m, Perceive: 16.3 m, Characterize: 8.1 m, Validate: 4.1 m, Scrutinize: 1.4 m Tele: Overview: 2543.1 m, Outline: 1271.6 m, Discern: 635.8 m, Perceive: 406.9 m, Characterize: 203.4 m, Validate: 101.7 m, Scrutinize: 33.9 m The OODPCVS values are calculated using pixel densities for different use cases as recommended by the IEC/EN 62676-4: 2025 standard. IEC 62676-4:2025 describes the planning, design, installation, testing, commissioning, and maintaining of video surveillance systems (VSS) comprising image capture device(s), interconnection(s) and image handling device(s), for use in security applications within private or public spaces.
Video
Main Stream
[Bullet channel] 50 Hz: 25 fps (2688 × 1520, 2560 × 1440，1920 × 1080,1280 × 960,1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440，1920 × 1080,1280 × 960,1280 × 720) [PTZ channel] 50 Hz: 50 fps ( 2688 × 1520，2560 × 1440 , 1920 x 1080，1280 x 960), 100 fps (1280 × 720) 60 Hz: 60 fps ( 2688 × 1520，2560 × 1440 , 1920 x 1080，1280 x 960), 120 fps (1280 × 720) *High frame rate is supported under monitoring mode only.
Sub-Stream
[Bullet channel] 50 Hz: 25 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (704 × 480，640 × 480，352 × 240),[PTZ channel] 50 Hz: 25 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (704 × 480，640 × 480，352 × 240)
Third Stream
[Bullet channel] 50 Hz: 25 fps (1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240),[PTZ channel] 50 Hz: 25 fps (1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline profile,Main profile,High profile
H.265 Type
Main profile
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
8 fixed regions for each stream
Audio
Audio Compression
G.711,MP2L2,AAC-LC,MP3,G.726,G.722.1,PCM
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3),16 Kbps (G.726),16 Kbps (G.722.1)
Audio Sampling Rate
8 kHz,16 kHz,32 kHz,48 kHz
Environment Noise Filtering
Yes
Network
Protocols
DHCP,RTP,SMTP,DNS,WebSocket,ICMP,HTTPS,RTSP,QoS,SSL/TLS,RTCP,PPPoE,NTP,IGMP,UDP,FTP,WebSockets,SNMP,HTTP,DDNS,IPv4,UPnP,SFTP,TCP/IP,802.1X,IPv6
API
ISAPI,SDK,ISUP,ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)，OTAP
Security
Password protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TLS 1.2
Network Storage
NAS (NFS, SMB/CIFS),auto network replenishment (ANR)
Simultaneous Live View
Up to 20 channels
User/Host
Up to 32 users. 3 user levels: administrator, operator, and user
Client
iVMS-4200,HikCentral Pro,Hik-Connect
Web Browser
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+； Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
AI Open Platform
Model Specification
Model type for AI Open Platform trained algorithm loading: high-performance model (small model).↵ Supports 4 model packages, each capable of detecting 16 target types and classifying 4 targets. The targets can be classified as 64 types. The device runs only 1 model at the same time.
Task Type
Algorithm type for AI Open Platform high-performance model (small model): Detection, Classification.
Event Type
Region target exception status detection, region target number counting, area overlap ratio counting, area overlap ratio exception detection, area status change detection, line crossing target detection, line crossing target counting, OCR trigger, full analysis rule, combined rule
Rule Setting
Up to 16 rules. Supports moving target filtering and shield region setting.
Day/Night Switch
schedule,Day,auto,night
Image Enhancement
3D DNR,HLC,BLC,EIS
Wide Dynamic Range (WDR)
[Bullet channel] 120 dB, [PTZ channel] 150 dB
Defog
Digital defog
Image Stabilization
EIS (Built-in gyroscope to improve EIS performance)
Regional Exposure
Yes
Regional Focus
[Bullet channel] No, [PTZ channel] Yes
Image Settings
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Image Parameters Switch
Yes
Privacy Mask
[Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
SNR
≥ 52 dB
Supplement Detection
Satellite Positioning
No
Gyroscope
Yes
Compass
No
Interface
Reset
Yes
Ethernet Interface
1 RJ45 100M self-adaptive Ethernet port
On-board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1TB .
Alarm
7 input(s), 2 output(s)
Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω
RS-485
1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Event
Basic Event
[PTZ channel] video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
Smart Event
unattended baggage detection,object removal detection,people gathering detection,fast moving detection,loitering detection,Line crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection,parking detection
Linkage
[Bullet channel] no,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
Deep Learning Function
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
Multi-Target-Type Detection
Supports simultaneous detection and capture of human body, face and vehicle
Face Capture
Detects up to 30 faces simultaneously, Uploads face with background and closed-up face pictures
Face Comparison
Up to 10 face libraries. 30000 faces for each library. 150000 faces in total
Road Traffic and Vehicle Detection
Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Blocklist and allowlist: up to 10,000 records LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98% Capture rate ≥99% Driving direction accuracy rate ≥98% Vehicle Capture Speed: Front installation in checkpoint scenario: up to 120 km/h Side installation: up to 80 km/h Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
People Density
Supports detecting the level of people density in the configured area,[PTZ channel]: no, [Panoramic channel]: yes
Intelligent Transportation System
Traffic Violation Evidence Collection: • PTZ camera channels support detection of six types of violations: wrongly parking, wrong-way driving, crossing the line, lane change, motor vehicle on non-motor vehicle lane, and U-turns. • Box camera channels support detection of five types of violations: wrong-way driving, driving on the lane line, lane change, motor vehicle on non-motor vehicle lane, and U-turns. Traffic Data Collection: Supports the collection of traffic flow, lane average speed, time headway, space headway, lane time occupancy, and lane space occupancy information. Traffic Flow Road incident detection: (1)Road incident detection for highways and elevated roads: The PTZ camera suppoorts fallen object detection, pedestrian detection, congestion detection, roadblock detection, construction detection, traffic accident detection; The box camera supports pedestrian detection, parking detction, congestion detection, roadblock detection, construction detection, traffic accident detection. (2)Road incident detection for urban roads: The PTZ camera suppoorts congestion detection, roadblock detection, construction detection, traffic accident detection; The box camera supports parking detction, congestion detection, roadblock detection, construction detection, traffic accident detection.
Regional People Counting
Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection Supports parameter settings: alarm times per exception, alarm interval, first alarm delay Supports searching real-time number of people People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B) Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)
Linkage and Tracking
Smart Tracking
Manual tracking, auto-tracking 3.0
Smart Linkage
Manual tracking, auto tracking, tracking takeover, linked tracking capture
Object Tracking
Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.
General
Power
36 VDC± 20%, max. 60 W (Max. 54W, including max. 15 W for IR and max. 8 W for heater) PoE 802.3bt, type4, class8, max. 90W (Max. 60 W, including max. 15 W for IR and max. 8 W for heater)
General Function
mirror,password protection
Operating Condition
-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing)
Wiper
Yes
Demist
Yes
Material
ADC12
Dimension
Ø260 mm × 382.9 mm (Ø10.24" × 15.07")
Approx. 8.1 kg (17.86 lb.)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Approval
EMC
CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021)
Safety
CE-LVD (EN 62368-1:2014 + A11:2017),CB (IEC 62368-1:2014)
Environment
CE-RoHS (2011/65/EU and its amendment (EU)2015/863)
Protection
IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013),IK10 (IEC 62262:2002, excluding glass window),Lightning Protection,Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line
Anti-Corrosion Protection
Model with -Y: NEMA 4X (NEMA 250-2018), Model without -Y: No
For better user experience, we highly recommend you to update your device to the latest firmware asap.

Resources

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.10.0_260727
IPDG_XLF_H13H11_V5.10.0 Release Note
Applied to:
DS-2SF7C425MXG1-ELY/14(F1)(B)

Specification

  • Camera
  • Image Sensor [Panoramic channel] 1/1.8" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS
  • Min. Illumination [Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR, [PTZ channel] Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON)
  • Shutter Speed 1/25 s to 1/30000 s
  • Slow Shutter Yes
  • Day & Night [Bullet channel] Color, [PTZ channel] IR cut filter
  • Zoom [PTZ channel] 25 × optical, 16 × digital
  • Max. Resolution [Bullet channel] 2688 × 1520, [PTZ channel] 2688 × 1520
  • Lens
  • Focus Auto,semi-auto,manual
  • Zoom Speed [Bullet channel] No, [PTZ channel] approx. 4.8 s
  • Focal Length [Bullet channel] 4 mm, [PTZ channel] 5.9 to 147.5 mm
  • FOV [Bullet channel] horizontal field of view: 89° ± 5°°, vertical field of view: 45° ± 5°°, diagonal field of view: 107° ± 5°°, [PTZ channel] horizontal field of view: 60.2° to 2.3°, vertical field of view: 35.2° to 1.3°, diagonal field of view: 67.4° to 2.6°
  • Aperture [Bullet channel] F1.0, [PTZ channel] F1.5
  • Illuminator
  • Supplement Light Type [Bullet channel] White Light and IR, [PTZ channel] IR
  • Supplement Light Range [Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 400 m
  • Smart Supplement Light Yes
  • PTZ
  • Movement Range (Pan) [PTZ channel] 0° to 360°
  • Movement Range (Tilt) [Bullet channel] 7° to 17°, [PTZ channel] -20° to 90°
  • Pan Speed [PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
  • Tilt Speed [Bullet channel] tilt speed configurable,[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
  • Proportional Pan [Bullet channel] No, [PTZ channel] Yes
  • Presets 300
  • Patrol Scan 8 patrols, up to 32 presets for each patrol
  • Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
  • Power-off Memory Yes
  • Park Action Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
  • 3D Positioning Yes
  • PTZ Status Display Yes
  • Preset Freezing Yes
  • Scheduled Task Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
  • DORI
  • O2DCPVS [Bullet channel] Overview: 69 m, Outline: 34.5 m, Discern: 17.2 m, Perceive: 11 m, Characterize: 5.5 m, Validate: 2.8 m, Scrutinize: 0.9 m [PTZ channel] Wide: Overview: 101.7 m, Outline: 50.9 m, Discern: 25.4 m, Perceive: 16.3 m, Characterize: 8.1 m, Validate: 4.1 m, Scrutinize: 1.4 m Tele: Overview: 2543.1 m, Outline: 1271.6 m, Discern: 635.8 m, Perceive: 406.9 m, Characterize: 203.4 m, Validate: 101.7 m, Scrutinize: 33.9 m The OODPCVS values are calculated using pixel densities for different use cases as recommended by the IEC/EN 62676-4: 2025 standard. IEC 62676-4:2025 describes the planning, design, installation, testing, commissioning, and maintaining of video surveillance systems (VSS) comprising image capture device(s), interconnection(s) and image handling device(s), for use in security applications within private or public spaces.
  • Video
  • Main Stream [Bullet channel] 50 Hz: 25 fps (2688 × 1520, 2560 × 1440，1920 × 1080,1280 × 960,1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440，1920 × 1080,1280 × 960,1280 × 720) [PTZ channel] 50 Hz: 50 fps ( 2688 × 1520，2560 × 1440 , 1920 x 1080，1280 x 960), 100 fps (1280 × 720) 60 Hz: 60 fps ( 2688 × 1520，2560 × 1440 , 1920 x 1080，1280 x 960), 120 fps (1280 × 720) *High frame rate is supported under monitoring mode only.
  • Sub-Stream [Bullet channel] 50 Hz: 25 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (704 × 480，640 × 480，352 × 240),[PTZ channel] 50 Hz: 25 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (704 × 480，640 × 480，352 × 240)
  • Third Stream [Bullet channel] 50 Hz: 25 fps (1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240),[PTZ channel] 50 Hz: 25 fps (1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG
  • Video Bit Rate 32 Kbps to 16 Mbps
  • H.264 Type Baseline profile,Main profile,High profile
  • H.265 Type Main profile
  • Scalable Video Coding (SVC) H.264 and H.265 encoding
  • Region of Interest (ROI) 8 fixed regions for each stream
  • Audio
  • Audio Compression G.711,MP2L2,AAC-LC,MP3,G.726,G.722.1,PCM
  • Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3),16 Kbps (G.726),16 Kbps (G.722.1)
  • Audio Sampling Rate 8 kHz,16 kHz,32 kHz,48 kHz
  • Environment Noise Filtering Yes
  • Network
  • Protocols DHCP,RTP,SMTP,DNS,WebSocket,ICMP,HTTPS,RTSP,QoS,SSL/TLS,RTCP,PPPoE,NTP,IGMP,UDP,FTP,WebSockets,SNMP,HTTP,DDNS,IPv4,UPnP,SFTP,TCP/IP,802.1X,IPv6
  • API ISAPI,SDK,ISUP,ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)，OTAP
  • Security Password protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TLS 1.2
  • Network Storage NAS (NFS, SMB/CIFS),auto network replenishment (ANR)
  • Simultaneous Live View Up to 20 channels
  • User/Host Up to 32 users. 3 user levels: administrator, operator, and user
  • Client iVMS-4200,HikCentral Pro,Hik-Connect
  • Web Browser Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+； Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • AI Open Platform
  • Model Specification Model type for AI Open Platform trained algorithm loading: high-performance model (small model).↵ Supports 4 model packages, each capable of detecting 16 target types and classifying 4 targets. The targets can be classified as 64 types. The device runs only 1 model at the same time.
  • Task Type Algorithm type for AI Open Platform high-performance model (small model): Detection, Classification.
  • Event Type Region target exception status detection, region target number counting, area overlap ratio counting, area overlap ratio exception detection, area status change detection, line crossing target detection, line crossing target counting, OCR trigger, full analysis rule, combined rule
  • Rule Setting Up to 16 rules. Supports moving target filtering and shield region setting.
  • Image
  • Day/Night Switch schedule,Day,auto,night
  • Image Enhancement 3D DNR,HLC,BLC,EIS
  • Wide Dynamic Range (WDR) [Bullet channel] 120 dB, [PTZ channel] 150 dB
  • Defog Digital defog
  • Image Stabilization EIS (Built-in gyroscope to improve EIS performance)
  • Regional Exposure Yes
  • Regional Focus [Bullet channel] No, [PTZ channel] Yes
  • Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
  • Image Parameters Switch Yes
  • Privacy Mask [Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
  • SNR ≥ 52 dB
  • Supplement Detection
  • Satellite Positioning No
  • Gyroscope Yes
  • Compass No
  • Interface
  • Reset Yes
  • Ethernet Interface 1 RJ45 100M self-adaptive Ethernet port
  • On-board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1TB .
  • Alarm 7 input(s), 2 output(s)
  • Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω
  • RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Event
  • Basic Event [PTZ channel] video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
  • Smart Event unattended baggage detection,object removal detection,people gathering detection,fast moving detection,loitering detection,Line crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection,parking detection
  • Linkage [Bullet channel] no,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
  • Deep Learning Function
  • Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
  • Multi-Target-Type Detection Supports simultaneous detection and capture of human body, face and vehicle
  • Face Capture Detects up to 30 faces simultaneously, Uploads face with background and closed-up face pictures
  • Face Comparison Up to 10 face libraries. 30000 faces for each library. 150000 faces in total
  • Road Traffic and Vehicle Detection Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Blocklist and allowlist: up to 10,000 records LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98% Capture rate ≥99% Driving direction accuracy rate ≥98% Vehicle Capture Speed: Front installation in checkpoint scenario: up to 120 km/h Side installation: up to 80 km/h Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
  • People Density Supports detecting the level of people density in the configured area,[PTZ channel]: no, [Panoramic channel]: yes
  • Intelligent Transportation System Traffic Violation Evidence Collection: • PTZ camera channels support detection of six types of violations: wrongly parking, wrong-way driving, crossing the line, lane change, motor vehicle on non-motor vehicle lane, and U-turns. • Box camera channels support detection of five types of violations: wrong-way driving, driving on the lane line, lane change, motor vehicle on non-motor vehicle lane, and U-turns. Traffic Data Collection: Supports the collection of traffic flow, lane average speed, time headway, space headway, lane time occupancy, and lane space occupancy information. Traffic Flow Road incident detection: (1)Road incident detection for highways and elevated roads: The PTZ camera suppoorts fallen object detection, pedestrian detection, congestion detection, roadblock detection, construction detection, traffic accident detection; The box camera supports pedestrian detection, parking detction, congestion detection, roadblock detection, construction detection, traffic accident detection. (2)Road incident detection for urban roads: The PTZ camera suppoorts congestion detection, roadblock detection, construction detection, traffic accident detection; The box camera supports parking detction, congestion detection, roadblock detection, construction detection, traffic accident detection.
  • Regional People Counting Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection Supports parameter settings: alarm times per exception, alarm interval, first alarm delay Supports searching real-time number of people People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B) Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)
  • Linkage and Tracking
  • Smart Tracking Manual tracking, auto-tracking 3.0
  • Smart Linkage Manual tracking, auto tracking, tracking takeover, linked tracking capture
  • Object Tracking Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.
  • General
  • Power 36 VDC± 20%, max. 60 W (Max. 54W, including max. 15 W for IR and max. 8 W for heater) PoE 802.3bt, type4, class8, max. 90W (Max. 60 W, including max. 15 W for IR and max. 8 W for heater)
  • General Function mirror,password protection
  • Operating Condition -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing)
  • Wiper Yes
  • Demist Yes
  • Material ADC12
  • Dimension Ø260 mm × 382.9 mm (Ø10.24" × 15.07")
  • Approx. 8.1 kg (17.86 lb.)
  • Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Approval
  • EMC CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021)
  • Safety CE-LVD (EN 62368-1:2014 + A11:2017),CB (IEC 62368-1:2014)
  • Environment CE-RoHS (2011/65/EU and its amendment (EU)2015/863)
  • Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013),IK10 (IEC 62262:2002, excluding glass window),Lightning Protection,Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line
  • Anti-Corrosion Protection Model with -Y: NEMA 4X (NEMA 250-2018), Model without -Y: No
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
[Panoramic channel] 1/1.8" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS
Min. Illumination
[Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR, [PTZ channel] Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON)
Shutter Speed
1/25 s to 1/30000 s
Slow Shutter
Yes
Day & Night
[Bullet channel] Color, [PTZ channel] IR cut filter
Zoom
[PTZ channel] 25 × optical, 16 × digital
Max. Resolution
[Bullet channel] 2688 × 1520, [PTZ channel] 2688 × 1520
Lens
Focus
Auto,semi-auto,manual
Zoom Speed
[Bullet channel] No, [PTZ channel] approx. 4.8 s
Focal Length
[Bullet channel] 4 mm, [PTZ channel] 5.9 to 147.5 mm
FOV
[Bullet channel] horizontal field of view: 89° ± 5°°, vertical field of view: 45° ± 5°°, diagonal field of view: 107° ± 5°°, [PTZ channel] horizontal field of view: 60.2° to 2.3°, vertical field of view: 35.2° to 1.3°, diagonal field of view: 67.4° to 2.6°
Aperture
[Bullet channel] F1.0, [PTZ channel] F1.5
Illuminator
Supplement Light Type
[Bullet channel] White Light and IR, [PTZ channel] IR
Supplement Light Range
[Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 400 m
Smart Supplement Light
Yes
PTZ
Movement Range (Pan)
[PTZ channel] 0° to 360°
Movement Range (Tilt)
[Bullet channel] 7° to 17°, [PTZ channel] -20° to 90°
Pan Speed
[PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
Tilt Speed
[Bullet channel] tilt speed configurable,[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional Pan
[Bullet channel] No, [PTZ channel] Yes
Presets
300
Patrol Scan
8 patrols, up to 32 presets for each patrol
Pattern Scan
4 pattern scans, record time over 10 minutes for each scan
Power-off Memory
Yes
Park Action
Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
3D Positioning
Yes
PTZ Status Display
Yes
Preset Freezing
Yes
Scheduled Task
Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
DORI
O2DCPVS
[Bullet channel] Overview: 69 m, Outline: 34.5 m, Discern: 17.2 m, Perceive: 11 m, Characterize: 5.5 m, Validate: 2.8 m, Scrutinize: 0.9 m [PTZ channel] Wide: Overview: 101.7 m, Outline: 50.9 m, Discern: 25.4 m, Perceive: 16.3 m, Characterize: 8.1 m, Validate: 4.1 m, Scrutinize: 1.4 m Tele: Overview: 2543.1 m, Outline: 1271.6 m, Discern: 635.8 m, Perceive: 406.9 m, Characterize: 203.4 m, Validate: 101.7 m, Scrutinize: 33.9 m The OODPCVS values are calculated using pixel densities for different use cases as recommended by the IEC/EN 62676-4: 2025 standard. IEC 62676-4:2025 describes the planning, design, installation, testing, commissioning, and maintaining of video surveillance systems (VSS) comprising image capture device(s), interconnection(s) and image handling device(s), for use in security applications within private or public spaces.
Video
Main Stream
[Bullet channel] 50 Hz: 25 fps (2688 × 1520, 2560 × 1440，1920 × 1080,1280 × 960,1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440，1920 × 1080,1280 × 960,1280 × 720) [PTZ channel] 50 Hz: 50 fps ( 2688 × 1520，2560 × 1440 , 1920 x 1080，1280 x 960), 100 fps (1280 × 720) 60 Hz: 60 fps ( 2688 × 1520，2560 × 1440 , 1920 x 1080，1280 x 960), 120 fps (1280 × 720) *High frame rate is supported under monitoring mode only.
Sub-Stream
[Bullet channel] 50 Hz: 25 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (704 × 480，640 × 480，352 × 240),[PTZ channel] 50 Hz: 25 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (704 × 480，640 × 480，352 × 240)
Third Stream
[Bullet channel] 50 Hz: 25 fps (1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240),[PTZ channel] 50 Hz: 25 fps (1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline profile,Main profile,High profile
H.265 Type
Main profile
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
8 fixed regions for each stream
Audio
Audio Compression
G.711,MP2L2,AAC-LC,MP3,G.726,G.722.1,PCM
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3),16 Kbps (G.726),16 Kbps (G.722.1)
Audio Sampling Rate
8 kHz,16 kHz,32 kHz,48 kHz
Environment Noise Filtering
Yes
Network
Protocols
DHCP,RTP,SMTP,DNS,WebSocket,ICMP,HTTPS,RTSP,QoS,SSL/TLS,RTCP,PPPoE,NTP,IGMP,UDP,FTP,WebSockets,SNMP,HTTP,DDNS,IPv4,UPnP,SFTP,TCP/IP,802.1X,IPv6
API
ISAPI,SDK,ISUP,ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)，OTAP
Security
Password protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TLS 1.2
Network Storage
NAS (NFS, SMB/CIFS),auto network replenishment (ANR)
Simultaneous Live View
Up to 20 channels
User/Host
Up to 32 users. 3 user levels: administrator, operator, and user
Client
iVMS-4200,HikCentral Pro,Hik-Connect
Web Browser
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+； Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
AI Open Platform
Model Specification
Model type for AI Open Platform trained algorithm loading: high-performance model (small model).↵ Supports 4 model packages, each capable of detecting 16 target types and classifying 4 targets. The targets can be classified as 64 types. The device runs only 1 model at the same time.
Task Type
Algorithm type for AI Open Platform high-performance model (small model): Detection, Classification.
Event Type
Region target exception status detection, region target number counting, area overlap ratio counting, area overlap ratio exception detection, area status change detection, line crossing target detection, line crossing target counting, OCR trigger, full analysis rule, combined rule
Rule Setting
Up to 16 rules. Supports moving target filtering and shield region setting.
Day/Night Switch
schedule,Day,auto,night
Image Enhancement
3D DNR,HLC,BLC,EIS
Wide Dynamic Range (WDR)
[Bullet channel] 120 dB, [PTZ channel] 150 dB
Defog
Digital defog
Image Stabilization
EIS (Built-in gyroscope to improve EIS performance)
Regional Exposure
Yes
Regional Focus
[Bullet channel] No, [PTZ channel] Yes
Image Settings
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Image Parameters Switch
Yes
Privacy Mask
[Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
SNR
≥ 52 dB
Supplement Detection
Satellite Positioning
No
Gyroscope
Yes
Compass
No
Interface
Reset
Yes
Ethernet Interface
1 RJ45 100M self-adaptive Ethernet port
On-board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1TB .
Alarm
7 input(s), 2 output(s)
Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω
RS-485
1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Event
Basic Event
[PTZ channel] video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
Smart Event
unattended baggage detection,object removal detection,people gathering detection,fast moving detection,loitering detection,Line crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection,parking detection
Linkage
[Bullet channel] no,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
Deep Learning Function
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
Multi-Target-Type Detection
Supports simultaneous detection and capture of human body, face and vehicle
Face Capture
Detects up to 30 faces simultaneously, Uploads face with background and closed-up face pictures
Face Comparison
Up to 10 face libraries. 30000 faces for each library. 150000 faces in total
Road Traffic and Vehicle Detection
Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Blocklist and allowlist: up to 10,000 records LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98% Capture rate ≥99% Driving direction accuracy rate ≥98% Vehicle Capture Speed: Front installation in checkpoint scenario: up to 120 km/h Side installation: up to 80 km/h Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
People Density
Supports detecting the level of people density in the configured area,[PTZ channel]: no, [Panoramic channel]: yes
Intelligent Transportation System
Traffic Violation Evidence Collection: • PTZ camera channels support detection of six types of violations: wrongly parking, wrong-way driving, crossing the line, lane change, motor vehicle on non-motor vehicle lane, and U-turns. • Box camera channels support detection of five types of violations: wrong-way driving, driving on the lane line, lane change, motor vehicle on non-motor vehicle lane, and U-turns. Traffic Data Collection: Supports the collection of traffic flow, lane average speed, time headway, space headway, lane time occupancy, and lane space occupancy information. Traffic Flow Road incident detection: (1)Road incident detection for highways and elevated roads: The PTZ camera suppoorts fallen object detection, pedestrian detection, congestion detection, roadblock detection, construction detection, traffic accident detection; The box camera supports pedestrian detection, parking detction, congestion detection, roadblock detection, construction detection, traffic accident detection. (2)Road incident detection for urban roads: The PTZ camera suppoorts congestion detection, roadblock detection, construction detection, traffic accident detection; The box camera supports parking detction, congestion detection, roadblock detection, construction detection, traffic accident detection.
Regional People Counting
Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection Supports parameter settings: alarm times per exception, alarm interval, first alarm delay Supports searching real-time number of people People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B) Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)
Linkage and Tracking
Smart Tracking
Manual tracking, auto-tracking 3.0
Smart Linkage
Manual tracking, auto tracking, tracking takeover, linked tracking capture
Object Tracking
Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.
General
Power
36 VDC± 20%, max. 60 W (Max. 54W, including max. 15 W for IR and max. 8 W for heater) PoE 802.3bt, type4, class8, max. 90W (Max. 60 W, including max. 15 W for IR and max. 8 W for heater)
General Function
mirror,password protection
Operating Condition
-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing)
Wiper
Yes
Demist
Yes
Material
ADC12
Dimension
Ø260 mm × 382.9 mm (Ø10.24" × 15.07")
Approx. 8.1 kg (17.86 lb.)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Approval
EMC
CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021)
Safety
CE-LVD (EN 62368-1:2014 + A11:2017),CB (IEC 62368-1:2014)
Environment
CE-RoHS (2011/65/EU and its amendment (EU)2015/863)
Protection
IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013),IK10 (IEC 62262:2002, excluding glass window),Lightning Protection,Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line
Anti-Corrosion Protection
Model with -Y: NEMA 4X (NEMA 250-2018), Model without -Y: No
For better user experience, we highly recommend you to update your device to the latest firmware asap.

Resources

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.10.0_260727
IPDG_XLF_H13H11_V5.10.0 Release Note
Applied to:
DS-2SF7C425MXG1-EL/14(F1)(B)

Specification

  • Camera
  • Image Sensor [Panoramic channel] 1/1.8" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS
  • Min. Illumination [Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR, [PTZ channel] Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON)
  • Shutter Speed 1/25 s to 1/30000 s
  • Slow Shutter Yes
  • Day & Night [Bullet channel] Color, [PTZ channel] IR cut filter
  • Zoom [PTZ channel] 25 × optical, 16 × digital
  • Max. Resolution [Bullet channel] 2688 × 1520, [PTZ channel] 2688 × 1520
  • Lens
  • Focus Auto,semi-auto,manual
  • Zoom Speed [Bullet channel] No, [PTZ channel] approx. 4.8 s
  • Focal Length [Bullet channel] 4 mm, [PTZ channel] 5.9 to 147.5 mm
  • FOV [Bullet channel] horizontal field of view: 89° ± 5°°, vertical field of view: 45° ± 5°°, diagonal field of view: 107° ± 5°°, [PTZ channel] horizontal field of view: 60.2° to 2.3°, vertical field of view: 35.2° to 1.3°, diagonal field of view: 67.4° to 2.6°
  • Aperture [Bullet channel] F1.0, [PTZ channel] F1.5
  • Illuminator
  • Supplement Light Type [Bullet channel] White Light and IR, [PTZ channel] IR
  • Supplement Light Range [Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 400 m
  • Smart Supplement Light Yes
  • PTZ
  • Movement Range (Pan) [PTZ channel] 0° to 360°
  • Movement Range (Tilt) [Bullet channel] 7° to 17°, [PTZ channel] -20° to 90°
  • Pan Speed [PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
  • Tilt Speed [Bullet channel] tilt speed configurable,[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
  • Proportional Pan [Bullet channel] No, [PTZ channel] Yes
  • Presets 300
  • Patrol Scan 8 patrols, up to 32 presets for each patrol
  • Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
  • Power-off Memory Yes
  • Park Action Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
  • 3D Positioning Yes
  • PTZ Status Display Yes
  • Preset Freezing Yes
  • Scheduled Task Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
  • DORI
  • O2DCPVS [Bullet channel] Overview: 69 m, Outline: 34.5 m, Discern: 17.2 m, Perceive: 11 m, Characterize: 5.5 m, Validate: 2.8 m, Scrutinize: 0.9 m [PTZ channel] Wide: Overview: 101.7 m, Outline: 50.9 m, Discern: 25.4 m, Perceive: 16.3 m, Characterize: 8.1 m, Validate: 4.1 m, Scrutinize: 1.4 m Tele: Overview: 2543.1 m, Outline: 1271.6 m, Discern: 635.8 m, Perceive: 406.9 m, Characterize: 203.4 m, Validate: 101.7 m, Scrutinize: 33.9 m The OODPCVS values are calculated using pixel densities for different use cases as recommended by the IEC/EN 62676-4: 2025 standard. IEC 62676-4:2025 describes the planning, design, installation, testing, commissioning, and maintaining of video surveillance systems (VSS) comprising image capture device(s), interconnection(s) and image handling device(s), for use in security applications within private or public spaces.
  • Video
  • Main Stream [Bullet channel] 50 Hz: 25 fps (2688 × 1520, 2560 × 1440，1920 × 1080,1280 × 960,1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440，1920 × 1080,1280 × 960,1280 × 720) [PTZ channel] 50 Hz: 50 fps ( 2688 × 1520，2560 × 1440 , 1920 x 1080，1280 x 960), 100 fps (1280 × 720) 60 Hz: 60 fps ( 2688 × 1520，2560 × 1440 , 1920 x 1080，1280 x 960), 120 fps (1280 × 720) *High frame rate is supported under monitoring mode only.
  • Sub-Stream [Bullet channel] 50 Hz: 25 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (704 × 480，640 × 480，352 × 240),[PTZ channel] 50 Hz: 25 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (704 × 480，640 × 480，352 × 240)
  • Third Stream [Bullet channel] 50 Hz: 25 fps (1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240),[PTZ channel] 50 Hz: 25 fps (1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG
  • Video Bit Rate 32 Kbps to 16 Mbps
  • H.264 Type Baseline profile,Main profile,High profile
  • H.265 Type Main profile
  • Scalable Video Coding (SVC) H.264 and H.265 encoding
  • Region of Interest (ROI) 8 fixed regions for each stream
  • Audio
  • Audio Compression G.711,MP2L2,AAC-LC,MP3,G.726,G.722.1,PCM
  • Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3),16 Kbps (G.726),16 Kbps (G.722.1)
  • Audio Sampling Rate 8 kHz,16 kHz,32 kHz,48 kHz
  • Environment Noise Filtering Yes
  • Network
  • Protocols DHCP,RTP,SMTP,DNS,WebSocket,ICMP,HTTPS,RTSP,QoS,SSL/TLS,RTCP,PPPoE,NTP,IGMP,UDP,FTP,WebSockets,SNMP,HTTP,DDNS,IPv4,UPnP,SFTP,TCP/IP,802.1X,IPv6
  • API ISAPI,SDK,ISUP,ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)，OTAP
  • Security Password protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TLS 1.2
  • Network Storage NAS (NFS, SMB/CIFS),auto network replenishment (ANR)
  • Simultaneous Live View Up to 20 channels
  • User/Host Up to 32 users. 3 user levels: administrator, operator, and user
  • Client iVMS-4200,HikCentral Pro,Hik-Connect
  • Web Browser Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+； Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • AI Open Platform
  • Model Specification Model type for AI Open Platform trained algorithm loading: high-performance model (small model).↵ Supports 4 model packages, each capable of detecting 16 target types and classifying 4 targets. The targets can be classified as 64 types. The device runs only 1 model at the same time.
  • Task Type Algorithm type for AI Open Platform high-performance model (small model): Detection, Classification.
  • Event Type Region target exception status detection, region target number counting, area overlap ratio counting, area overlap ratio exception detection, area status change detection, line crossing target detection, line crossing target counting, OCR trigger, full analysis rule, combined rule
  • Rule Setting Up to 16 rules. Supports moving target filtering and shield region setting.
  • Image
  • Day/Night Switch schedule,Day,auto,night
  • Image Enhancement 3D DNR,HLC,BLC,EIS
  • Wide Dynamic Range (WDR) [Bullet channel] 120 dB, [PTZ channel] 150 dB
  • Defog Digital defog
  • Image Stabilization EIS (Built-in gyroscope to improve EIS performance)
  • Regional Exposure Yes
  • Regional Focus [Bullet channel] No, [PTZ channel] Yes
  • Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
  • Image Parameters Switch Yes
  • Privacy Mask [Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
  • SNR ≥ 52 dB
  • Supplement Detection
  • Satellite Positioning No
  • Gyroscope Yes
  • Compass No
  • Interface
  • Reset Yes
  • Ethernet Interface 1 RJ45 100M self-adaptive Ethernet port
  • On-board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1TB .
  • Alarm 7 input(s), 2 output(s)
  • Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω
  • RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Event
  • Basic Event [PTZ channel] video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
  • Smart Event unattended baggage detection,object removal detection,people gathering detection,fast moving detection,loitering detection,Line crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection,parking detection
  • Linkage [Bullet channel] no,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
  • Deep Learning Function
  • Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
  • Multi-Target-Type Detection Supports simultaneous detection and capture of human body, face and vehicle
  • Face Capture Detects up to 30 faces simultaneously, Uploads face with background and closed-up face pictures
  • Face Comparison Up to 10 face libraries. 30000 faces for each library. 150000 faces in total
  • Road Traffic and Vehicle Detection Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Blocklist and allowlist: up to 10,000 records LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98% Capture rate ≥99% Driving direction accuracy rate ≥98% Vehicle Capture Speed: Front installation in checkpoint scenario: up to 120 km/h Side installation: up to 80 km/h Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
  • People Density Supports detecting the level of people density in the configured area,[PTZ channel]: no, [Panoramic channel]: yes
  • Intelligent Transportation System Traffic Violation Evidence Collection: • PTZ camera channels support detection of six types of violations: wrongly parking, wrong-way driving, crossing the line, lane change, motor vehicle on non-motor vehicle lane, and U-turns. • Box camera channels support detection of five types of violations: wrong-way driving, driving on the lane line, lane change, motor vehicle on non-motor vehicle lane, and U-turns. Traffic Data Collection: Supports the collection of traffic flow, lane average speed, time headway, space headway, lane time occupancy, and lane space occupancy information. Traffic Flow Road incident detection: (1)Road incident detection for highways and elevated roads: The PTZ camera suppoorts fallen object detection, pedestrian detection, congestion detection, roadblock detection, construction detection, traffic accident detection; The box camera supports pedestrian detection, parking detction, congestion detection, roadblock detection, construction detection, traffic accident detection. (2)Road incident detection for urban roads: The PTZ camera suppoorts congestion detection, roadblock detection, construction detection, traffic accident detection; The box camera supports parking detction, congestion detection, roadblock detection, construction detection, traffic accident detection.
  • Regional People Counting Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection Supports parameter settings: alarm times per exception, alarm interval, first alarm delay Supports searching real-time number of people People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B) Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)
  • Linkage and Tracking
  • Smart Tracking Manual tracking, auto-tracking 3.0
  • Smart Linkage Manual tracking, auto tracking, tracking takeover, linked tracking capture
  • Object Tracking Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.
  • General
  • Power 36 VDC± 20%, max. 60 W (Max. 54W, including max. 15 W for IR and max. 8 W for heater) PoE 802.3bt, type4, class8, max. 90W (Max. 60 W, including max. 15 W for IR and max. 8 W for heater)
  • General Function mirror,password protection
  • Operating Condition -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing)
  • Wiper Yes
  • Demist Yes
  • Material ADC12
  • Dimension Ø260 mm × 382.9 mm (Ø10.24" × 15.07")
  • Approx. 8.1 kg (17.86 lb.)
  • Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Approval
  • EMC CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021)
  • Safety CE-LVD (EN 62368-1:2014 + A11:2017),CB (IEC 62368-1:2014)
  • Environment CE-RoHS (2011/65/EU and its amendment (EU)2015/863)
  • Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013),IK10 (IEC 62262:2002, excluding glass window),Lightning Protection,Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line
  • Anti-Corrosion Protection Model with -Y: NEMA 4X (NEMA 250-2018), Model without -Y: No
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
[Panoramic channel] 1/1.8" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS
Min. Illumination
[Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR, [PTZ channel] Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON)
Shutter Speed
1/25 s to 1/30000 s
Slow Shutter
Yes
Day & Night
[Bullet channel] Color, [PTZ channel] IR cut filter
Zoom
[PTZ channel] 25 × optical, 16 × digital
Max. Resolution
[Bullet channel] 2688 × 1520, [PTZ channel] 2688 × 1520
Lens
Focus
Auto,semi-auto,manual
Zoom Speed
[Bullet channel] No, [PTZ channel] approx. 4.8 s
Focal Length
[Bullet channel] 4 mm, [PTZ channel] 5.9 to 147.5 mm
FOV
[Bullet channel] horizontal field of view: 89° ± 5°°, vertical field of view: 45° ± 5°°, diagonal field of view: 107° ± 5°°, [PTZ channel] horizontal field of view: 60.2° to 2.3°, vertical field of view: 35.2° to 1.3°, diagonal field of view: 67.4° to 2.6°
Aperture
[Bullet channel] F1.0, [PTZ channel] F1.5
Illuminator
Supplement Light Type
[Bullet channel] White Light and IR, [PTZ channel] IR
Supplement Light Range
[Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 400 m
Smart Supplement Light
Yes
PTZ
Movement Range (Pan)
[PTZ channel] 0° to 360°
Movement Range (Tilt)
[Bullet channel] 7° to 17°, [PTZ channel] -20° to 90°
Pan Speed
[PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
Tilt Speed
[Bullet channel] tilt speed configurable,[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional Pan
[Bullet channel] No, [PTZ channel] Yes
Presets
300
Patrol Scan
8 patrols, up to 32 presets for each patrol
Pattern Scan
4 pattern scans, record time over 10 minutes for each scan
Power-off Memory
Yes
Park Action
Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
3D Positioning
Yes
PTZ Status Display
Yes
Preset Freezing
Yes
Scheduled Task
Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
DORI
O2DCPVS
[Bullet channel] Overview: 69 m, Outline: 34.5 m, Discern: 17.2 m, Perceive: 11 m, Characterize: 5.5 m, Validate: 2.8 m, Scrutinize: 0.9 m [PTZ channel] Wide: Overview: 101.7 m, Outline: 50.9 m, Discern: 25.4 m, Perceive: 16.3 m, Characterize: 8.1 m, Validate: 4.1 m, Scrutinize: 1.4 m Tele: Overview: 2543.1 m, Outline: 1271.6 m, Discern: 635.8 m, Perceive: 406.9 m, Characterize: 203.4 m, Validate: 101.7 m, Scrutinize: 33.9 m The OODPCVS values are calculated using pixel densities for different use cases as recommended by the IEC/EN 62676-4: 2025 standard. IEC 62676-4:2025 describes the planning, design, installation, testing, commissioning, and maintaining of video surveillance systems (VSS) comprising image capture device(s), interconnection(s) and image handling device(s), for use in security applications within private or public spaces.
Video
Main Stream
[Bullet channel] 50 Hz: 25 fps (2688 × 1520, 2560 × 1440，1920 × 1080,1280 × 960,1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440，1920 × 1080,1280 × 960,1280 × 720) [PTZ channel] 50 Hz: 50 fps ( 2688 × 1520，2560 × 1440 , 1920 x 1080，1280 x 960), 100 fps (1280 × 720) 60 Hz: 60 fps ( 2688 × 1520，2560 × 1440 , 1920 x 1080，1280 x 960), 120 fps (1280 × 720) *High frame rate is supported under monitoring mode only.
Sub-Stream
[Bullet channel] 50 Hz: 25 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (704 × 480，640 × 480，352 × 240),[PTZ channel] 50 Hz: 25 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (704 × 480，640 × 480，352 × 240)
Third Stream
[Bullet channel] 50 Hz: 25 fps (1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240),[PTZ channel] 50 Hz: 25 fps (1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline profile,Main profile,High profile
H.265 Type
Main profile
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
8 fixed regions for each stream
Audio
Audio Compression
G.711,MP2L2,AAC-LC,MP3,G.726,G.722.1,PCM
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3),16 Kbps (G.726),16 Kbps (G.722.1)
Audio Sampling Rate
8 kHz,16 kHz,32 kHz,48 kHz
Environment Noise Filtering
Yes
Network
Protocols
DHCP,RTP,SMTP,DNS,WebSocket,ICMP,HTTPS,RTSP,QoS,SSL/TLS,RTCP,PPPoE,NTP,IGMP,UDP,FTP,WebSockets,SNMP,HTTP,DDNS,IPv4,UPnP,SFTP,TCP/IP,802.1X,IPv6
API
ISAPI,SDK,ISUP,ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)，OTAP
Security
Password protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TLS 1.2
Network Storage
NAS (NFS, SMB/CIFS),auto network replenishment (ANR)
Simultaneous Live View
Up to 20 channels
User/Host
Up to 32 users. 3 user levels: administrator, operator, and user
Client
iVMS-4200,HikCentral Pro,Hik-Connect
Web Browser
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+； Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
AI Open Platform
Model Specification
Model type for AI Open Platform trained algorithm loading: high-performance model (small model).↵ Supports 4 model packages, each capable of detecting 16 target types and classifying 4 targets. The targets can be classified as 64 types. The device runs only 1 model at the same time.
Task Type
Algorithm type for AI Open Platform high-performance model (small model): Detection, Classification.
Event Type
Region target exception status detection, region target number counting, area overlap ratio counting, area overlap ratio exception detection, area status change detection, line crossing target detection, line crossing target counting, OCR trigger, full analysis rule, combined rule
Rule Setting
Up to 16 rules. Supports moving target filtering and shield region setting.
Day/Night Switch
schedule,Day,auto,night
Image Enhancement
3D DNR,HLC,BLC,EIS
Wide Dynamic Range (WDR)
[Bullet channel] 120 dB, [PTZ channel] 150 dB
Defog
Digital defog
Image Stabilization
EIS (Built-in gyroscope to improve EIS performance)
Regional Exposure
Yes
Regional Focus
[Bullet channel] No, [PTZ channel] Yes
Image Settings
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Image Parameters Switch
Yes
Privacy Mask
[Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
SNR
≥ 52 dB
Supplement Detection
Satellite Positioning
No
Gyroscope
Yes
Compass
No
Interface
Reset
Yes
Ethernet Interface
1 RJ45 100M self-adaptive Ethernet port
On-board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1TB .
Alarm
7 input(s), 2 output(s)
Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω
RS-485
1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Event
Basic Event
[PTZ channel] video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
Smart Event
unattended baggage detection,object removal detection,people gathering detection,fast moving detection,loitering detection,Line crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection,parking detection
Linkage
[Bullet channel] no,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
Deep Learning Function
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
Multi-Target-Type Detection
Supports simultaneous detection and capture of human body, face and vehicle
Face Capture
Detects up to 30 faces simultaneously, Uploads face with background and closed-up face pictures
Face Comparison
Up to 10 face libraries. 30000 faces for each library. 150000 faces in total
Road Traffic and Vehicle Detection
Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Blocklist and allowlist: up to 10,000 records LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98% Capture rate ≥99% Driving direction accuracy rate ≥98% Vehicle Capture Speed: Front installation in checkpoint scenario: up to 120 km/h Side installation: up to 80 km/h Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
People Density
Supports detecting the level of people density in the configured area,[PTZ channel]: no, [Panoramic channel]: yes
Intelligent Transportation System
Traffic Violation Evidence Collection: • PTZ camera channels support detection of six types of violations: wrongly parking, wrong-way driving, crossing the line, lane change, motor vehicle on non-motor vehicle lane, and U-turns. • Box camera channels support detection of five types of violations: wrong-way driving, driving on the lane line, lane change, motor vehicle on non-motor vehicle lane, and U-turns. Traffic Data Collection: Supports the collection of traffic flow, lane average speed, time headway, space headway, lane time occupancy, and lane space occupancy information. Traffic Flow Road incident detection: (1)Road incident detection for highways and elevated roads: The PTZ camera suppoorts fallen object detection, pedestrian detection, congestion detection, roadblock detection, construction detection, traffic accident detection; The box camera supports pedestrian detection, parking detction, congestion detection, roadblock detection, construction detection, traffic accident detection. (2)Road incident detection for urban roads: The PTZ camera suppoorts congestion detection, roadblock detection, construction detection, traffic accident detection; The box camera supports parking detction, congestion detection, roadblock detection, construction detection, traffic accident detection.
Regional People Counting
Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection Supports parameter settings: alarm times per exception, alarm interval, first alarm delay Supports searching real-time number of people People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B) Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)
Linkage and Tracking
Smart Tracking
Manual tracking, auto-tracking 3.0
Smart Linkage
Manual tracking, auto tracking, tracking takeover, linked tracking capture
Object Tracking
Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.
General
Power
36 VDC± 20%, max. 60 W (Max. 54W, including max. 15 W for IR and max. 8 W for heater) PoE 802.3bt, type4, class8, max. 90W (Max. 60 W, including max. 15 W for IR and max. 8 W for heater)
General Function
mirror,password protection
Operating Condition
-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing)
Wiper
Yes
Demist
Yes
Material
ADC12
Dimension
Ø260 mm × 382.9 mm (Ø10.24" × 15.07")
Approx. 8.1 kg (17.86 lb.)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Approval
EMC
CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021)
Safety
CE-LVD (EN 62368-1:2014 + A11:2017),CB (IEC 62368-1:2014)
Environment
CE-RoHS (2011/65/EU and its amendment (EU)2015/863)
Protection
IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013),IK10 (IEC 62262:2002, excluding glass window),Lightning Protection,Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line
Anti-Corrosion Protection
Model with -Y: NEMA 4X (NEMA 250-2018), Model without -Y: No
For better user experience, we highly recommend you to update your device to the latest firmware asap.

Resources

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.10.0_260727
IPDG_XLF_H13H11_V5.10.0 Release Note
Applied to:
DS-2SF7C425MXG1-ELWY/14(F1)(B)

Hikvision.com uses strictly necessary cookies and related technologies to enable the website to function. With your consent, we would also like to use cookies to observe and analyse traffic levels and other metrics / show you targeted advertising / show you advertising on the basis of your location / tailor our website's content. For more information on cookie practices please refer to our cookie policy.



Manage cookies Accept All
Accept All Manage cookies
Hotline Services
Contact Sales
Technical Support
Hikie
Subscribe Newsletter
Where to Buy
Hotline Services
Contact Us
Hik-Partner Pro close
Hik-Partner Pro
Security Business Assistant. At Your Fingertips. Learn more
Download Hik-Partner Pro
Scan and download the app
Download
Hik-Partner Pro

Get a better browsing experience

You are using a web browser we don’t support. Please try one of the following options to have a better experience of our web content.
