*Images are for illustrative purposes. Actual product appearance and specifications may vary.
AcuSeek NEW HOT
add compare icon

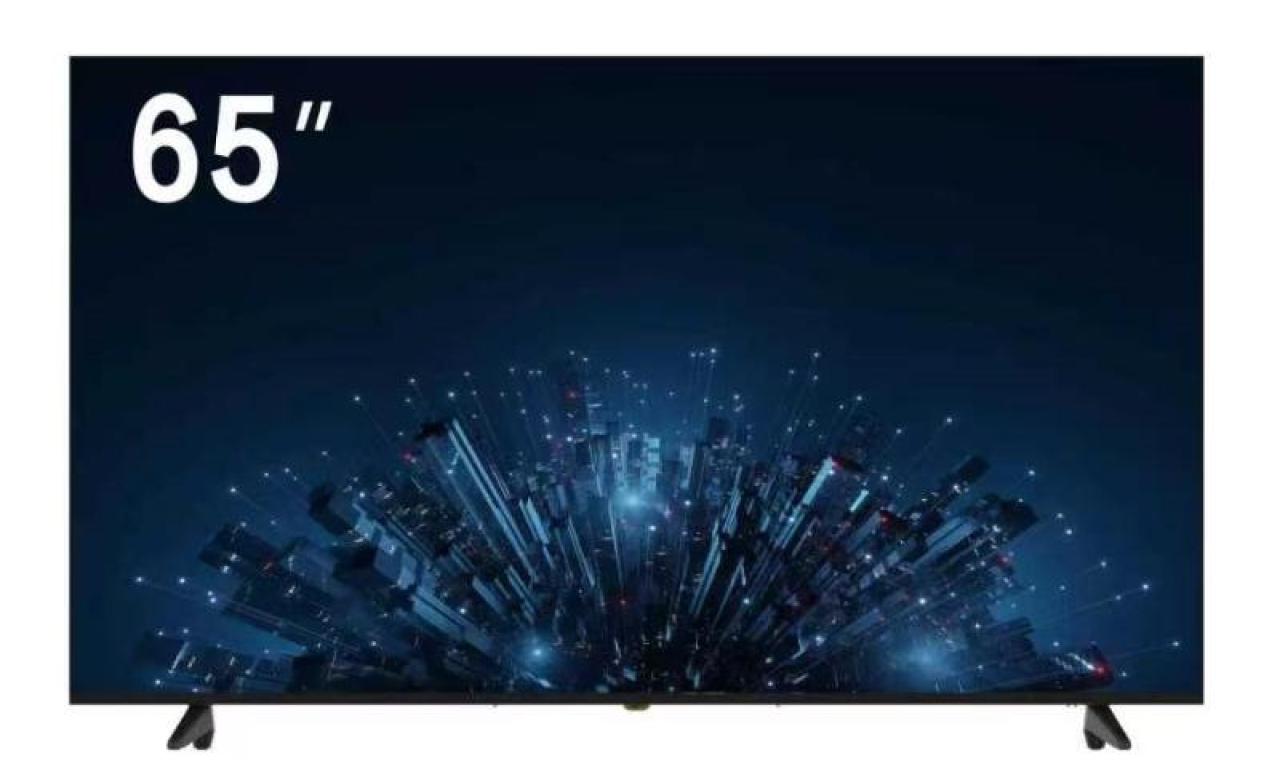

DS-D5065U3-1V0S(O-STD)(EU)

  • Supports 3840 × 2160 UHD display
  • 60 Hz continuous high-speed refresh rate for smoother dynamic performance
  • Ultra-narrow three-sided bezel with a slim profile
  • Multiple interfaces to meet daily needs
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-D5065U3-1V0S(EU)
View more View Less
DS-D5065U3-1V0S
Data Sheet

Specification

  • Display
  • Screen Size65 inch, 165.1 cm
  • Active Display Area1428.48 (H) mm × 803.52 (V) mm, 114.78 dm²
  • Resolution3840 × 2160 @ 60 Hz
  • BacklightD-LED
  • Pixel Pitch0.124 (H) mm × 0.372 (V) mm
  • Brightness300 cd/m²
  • Color Depth1.07 G
  • Color Gamut72% NTSC
  • Contrast Ratio5000 : 1
  • Refresh Rate60 Hz
  • Reliability7 × 24 H
  • Surface TreatmentHaze 2% , 3H
  • Interface
  • Video & Audio InputHDMI2.0 × 1，DP1.2 × 1，VGA × 1，LINE-IN × 1
  • Video & Audio OutputNA
  • Data Transmission InterfaceUSB2.0 × 1
  • Control InterfaceRS232-IN × 1，RS232-OUT × 1
  • Power
  • Power Supply100~240 V，50/60 Hz
  • Power Consumption≤ 160 W
  • Standby Consumption≤ 0.5 W
  • Working Environment
  • Working Temperature0 ℃ ~ 40 ℃
  • Working Humidity20% ~ 80% RH (Non-Condensing)
  • Storage Temperature-20 ℃ ~ 60 ℃
  • Storage Humidity10% ~ 90% RH (Non-Condensing)
  • General
  • Casing MaterialPlastic
  • VESA100 × 100mm
  • Bezel Width400 mm × 300 mm
  • Product Dimensions (W × H × D)1444.8 (W) mm × 828.2 (H) mm × 85.0 (D) mm (Without base) 1444.8 (W) mm × 827.2 (H) mm × 230.7 (D) mm (With base)
  • Package Dimensions (W × H × D)1667 (W) mm × 1052 (H) mm × 202 (D) mm
  • Standby Time600s
  • Net Weight15.0 ± 0.5 kg
  • Gross Weight22.6 ± 0.5 kg
  • Packing ListMonitor × 1, Base Assembly × 2, Base Screw × 6, HDMI Cable (1.5 m) × 1, Remote Control × 1, User Manual × 1, Multi-language Manual × 1
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Display
Screen Size
65 inch, 165.1 cm
Active Display Area
1428.48 (H) mm × 803.52 (V) mm, 114.78 dm²
Resolution
3840 × 2160 @ 60 Hz
Backlight
D-LED
Pixel Pitch
0.124 (H) mm × 0.372 (V) mm
Brightness
300 cd/m²
Color Depth
1.07 G
Color Gamut
72% NTSC
Contrast Ratio
5000 : 1
Refresh Rate
60 Hz
Reliability
7 × 24 H
Surface Treatment
Haze 2% , 3H
Interface
Video & Audio Input
HDMI2.0 × 1，DP1.2 × 1，VGA × 1，LINE-IN × 1
Video & Audio Output
NA
Data Transmission Interface
USB2.0 × 1
Control Interface
RS232-IN × 1，RS232-OUT × 1
Power
Power Supply
100~240 V，50/60 Hz
Power Consumption
≤ 160 W
Standby Consumption
≤ 0.5 W
Working Environment
Working Temperature
0 ℃ ~ 40 ℃
Working Humidity
20% ~ 80% RH (Non-Condensing)
Storage Temperature
-20 ℃ ~ 60 ℃
Storage Humidity
10% ~ 90% RH (Non-Condensing)
General
Casing Material
Plastic
VESA
100 × 100mm
Bezel Width
400 mm × 300 mm
Product Dimensions (W × H × D)
1444.8 (W) mm × 828.2 (H) mm × 85.0 (D) mm (Without base) 1444.8 (W) mm × 827.2 (H) mm × 230.7 (D) mm (With base)
Package Dimensions (W × H × D)
1667 (W) mm × 1052 (H) mm × 202 (D) mm
Standby Time
600s
Net Weight
15.0 ± 0.5 kg
Gross Weight
22.6 ± 0.5 kg
Packing List
Monitor × 1, Base Assembly × 2, Base Screw × 6, HDMI Cable (1.5 m) × 1, Remote Control × 1, User Manual × 1, Multi-language Manual × 1
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Display
  • Display
  • Display
  • Display
  • Display
  • Display
  • Display
  • Display
  • Display
  • Display
  • Display
  • Display
  • Display
Interface
  • Interface
  • Interface
  • Interface
  • Interface
Power
  • Power
  • Power
  • Power
Working Environment
  • Working Environment
  • Working Environment
  • Working Environment
  • Working Environment
General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
